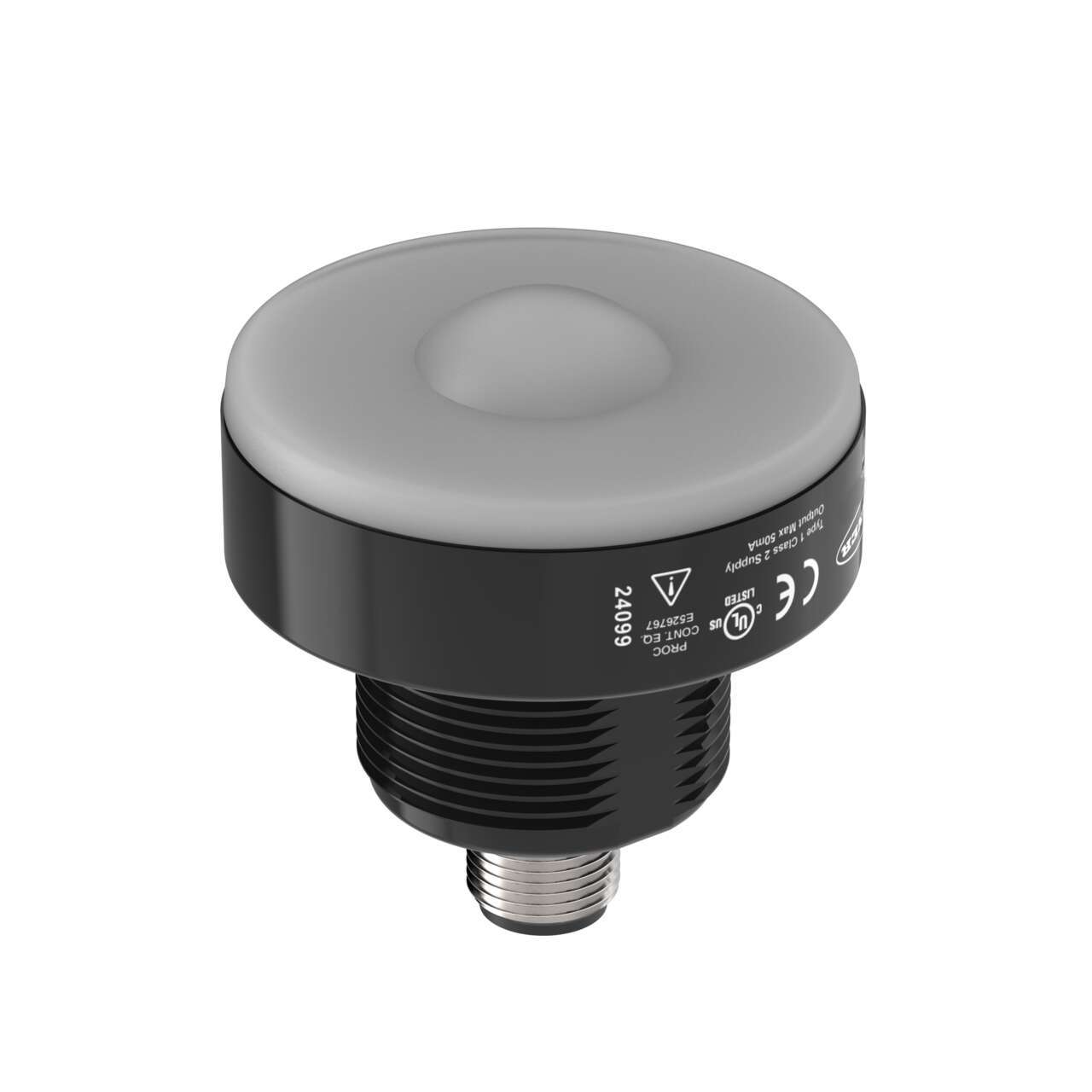

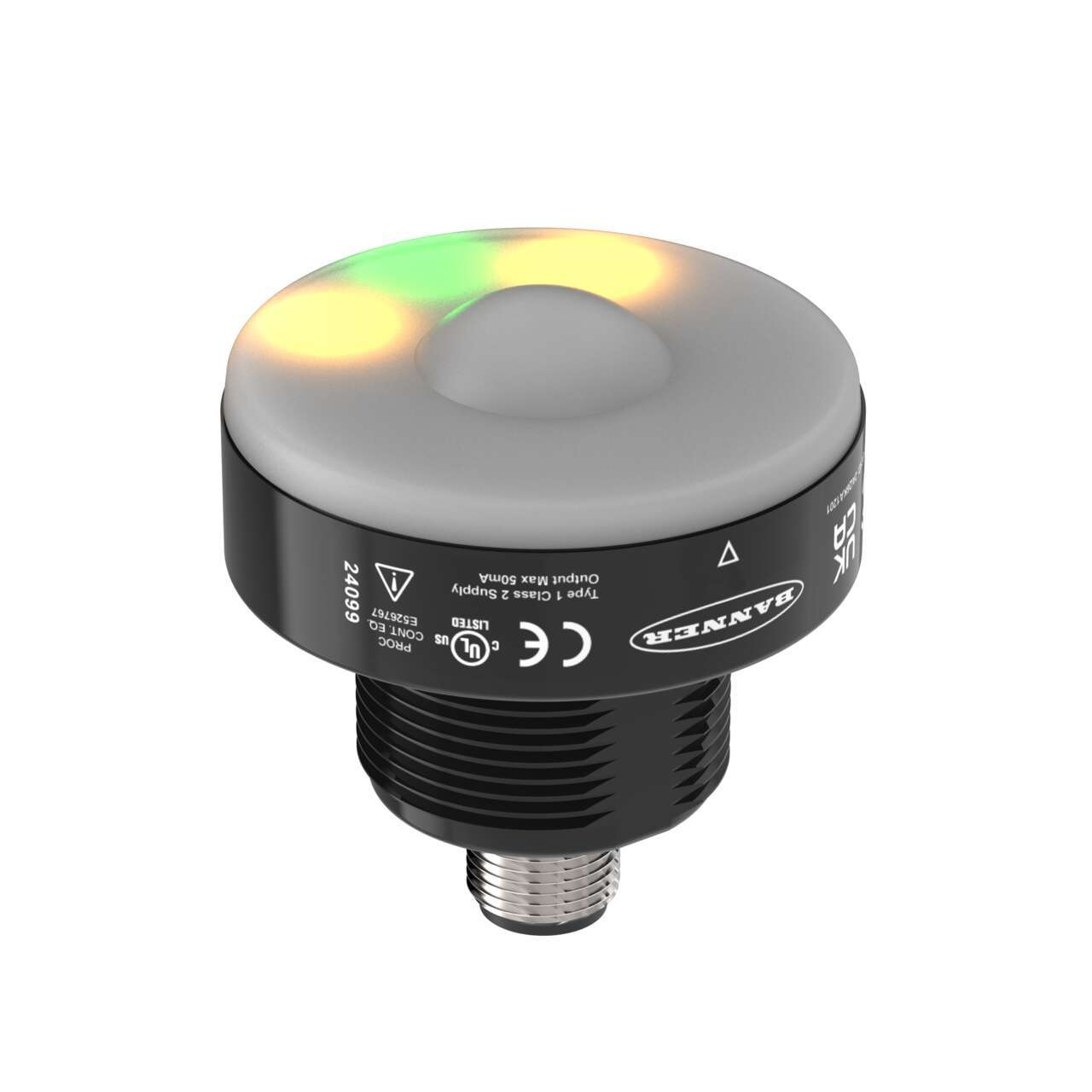

Banner engineering K50RB-4030-LIQ Radar Sensors
TF:
006816-HW-Banner-016
Overview
Reliable, Cost-Efficient Radar Sensor K50R Series Radar Sensors
| Power | DC |
| PFM Output | Yes |
| Sensing Beam | Radar |
| Operating Frequency | 60 GHz |
| PC Configurable | Yes |
| IP Rating | IP67 |
| FOV Type | Fixed |
| Supply Voltage | 10-30 V dc |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Time of Flight |
| Housing Style | Base Mount - Flat Window |
| Device Type | Sensor |
| Primary Housing Material | ABS/Polycarbonate |
| Analog Output Configuration | 4-20mA |
| Radar Beam Pattern (H x V °) | 40 x 30 |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Sensing Distance (mm) | 5000 |
| Minimum Sensing Distance (mm) | 50 |
| Number of Pins | 5 |
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Max Operating Temperature (°C) | 60 |
| Min Operating Temperature (°C) | -40 |
| Barrel Thread | M30 |
| Feature: Remote Teach | Yes |
| Feature: Clear Object Detection | Yes |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Quick Disconnect | Yes |
| Cert: US | Yes |
| Cert: Australia/New Zealand | Yes |
| Cert: European | Yes |
| Cert: Singapore | Yes |
| Cert: Taiwan | Yes |
| EPLAN Status | Published |
| EPLAN Original Sent Date | 02/14/2025 |
The K50R series of radar sensors provides a robust, cost-efficient solution for both short- and long-range detection applications, particularly in challenging environments.
