Pulse transmitter series LM OG TI 100 PVC, for industrial applications
TF:
006240-HW-BM-040
Overview

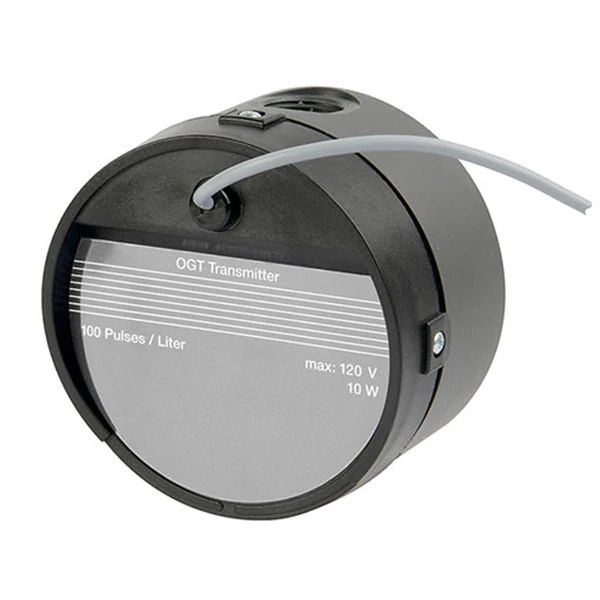

The Model LM OG-TI is an economical and rugged meter. The transmitter, mounted on the meter, can be wired to batch controllers, remote counters and other electronically operated instruments that can accept pulses from a reed switch, and have scaling capabilities. The oval gear transmitter is contained in a glass-filled plastic housing with a NEMA 4X rating and has a 100 PPL isolated reedswitch as output.
| Size | 1/2" BSPP |
| Flow range | 0.13…8 gpm |
| Temperature Range | 14…110° F |
| Pressure range | 4.5…145 psi |
The LM OG TI 100 PVC is designed specifically to dispense industrial fluids. Due to its modular design, low cost and ruggedness, it's a great choice for a variety of industrial applications.
- Compatible with most flow controllers and counters with scaling capabilities
- Humidity and moisture-resistant transmitter (IP65)
- Leakproof, magnetic drive
- Low maintenance costs
