Pulse Transmitter Series LM OG TI 100 Alu
TF:
006241-HW-BM-041
Overview
The Badger Meter oval gear meter with pulse transmitter, model LM OG-TI, is an economical, rugged yet accurate meter.
| Flow Range | 0.14…9.24 gpm |
| Temperature Range | -4…176° F |
| Pressure Range | 5.08…1450.38 psi |
| Accuracy | ± 0.5% |

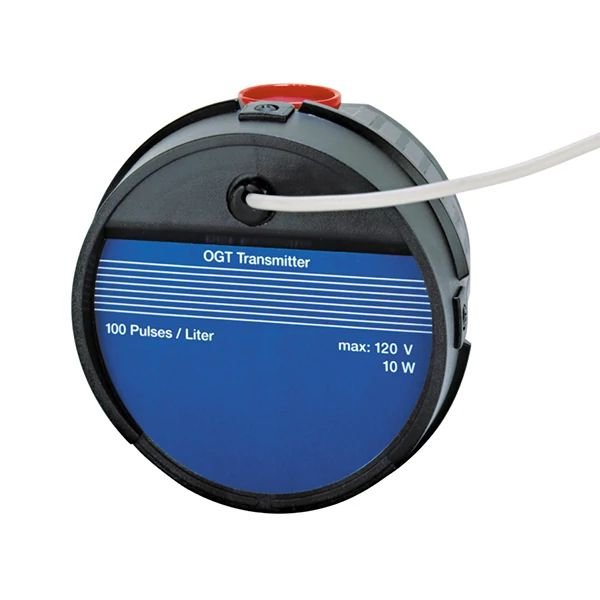

The transmitter, mounted on the meter, can be wired to batch controllers, remote counters and other electronically operated instruments that can accept pulses from a reed switch, and have scaling capabilities. The oval gear transmitter is contained in a glass-filled plastic housing with a NEMA 4X rating and has a 100 PPL isolated reedswitch as output.
