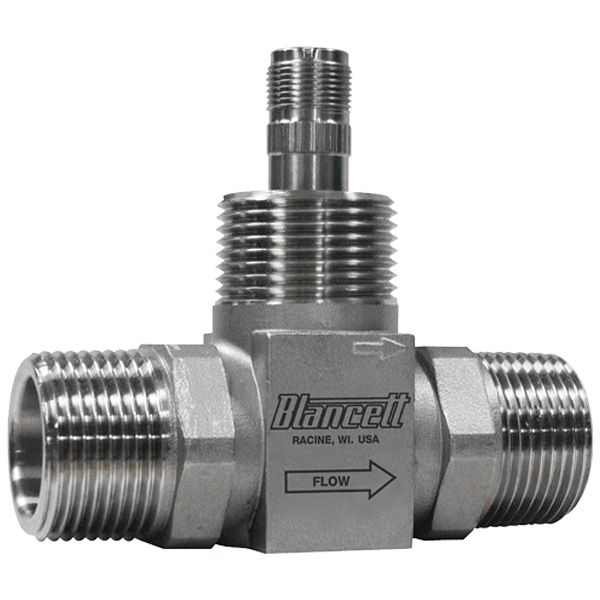

Model 1100 Turbine Flow Meter
TF:
006213-HW-BM-013
Overview
The Blancett® Model 1100 Turbine flow meter is designed to withstand the demands of the most rigorous flow measurement applications, both on and off the oilfield.
| Temperature Range | -150...425 °F |
| Size Range | 1/2...10 in. |
| Flow Range | 0.6...5000 gpm |
| Pressure Range | Up to 5000 PSI |
| Accuracy | ±1% |
| Turndown Ratio | 10:1 |
| Repeatability | ±0.1% |
The Model 1100 Turbine flow meter maintains measurement accuracy and mechanical integrity in many industrial applications.
- Simple Installation. Built for simple installation and service, requiring a minimum of 10 diameters upstream and 5 diameters downstream straight pipe length.
- Flexible Operation. Designed to operate in any orientation (horizontal to vertical) as long as the flow direction arrow is aligned with the actual line flow.
- Durable Construction. Features a rugged 316 stainless steel housing and rotor support assemblies with CD4CU stainless steel rotor.
