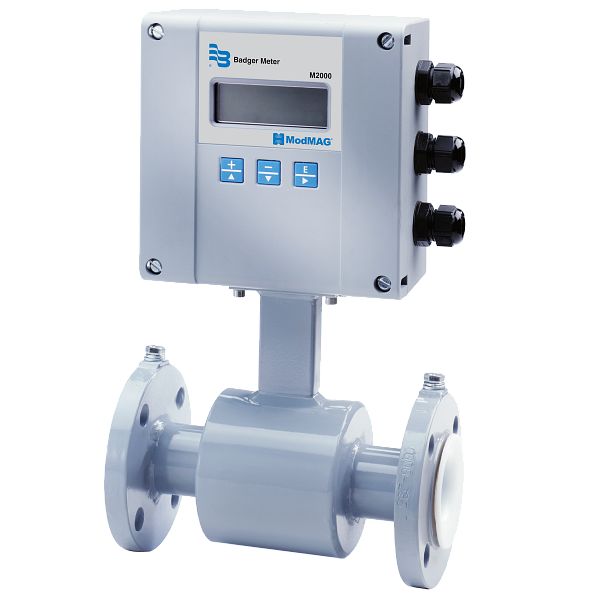

M2000 Electromagnetic Flow Meter
TF:
006201-HW-BM-001
Overview
M2000 Electromagnetic Flow Meter
| Parameter | Details |
|---|---|
| Type | Electromagnetic Flow Meter |
| Pipe Size Range | 0.5” to 16” |
| Accuracy | ±0.20% of rate ±1 mm/s |
| Power Input | 85–265 V AC or 10–36 V DC |
| Output/Communication | Modbus, BACnet, Analog, Pulse, HART (optional) |
| Liner Material | PTFE or Hard Rubber |
| Housing Material | Stainless Steel |
| Fluid Conductivity Requirement | ≥ 5 µS/cm |
| Display/Amplifier | Meter-Mounted (integral) |
| Temperature Range | Up to 150 °C (302 °F) |
| Installation | Inline, no straight-run required (optional zero straight-run accuracy mode) |
| Certifications | NSF Listed, MCERTS Approved |
| Maintenance | No moving parts – virtually maintenance-free |
The Badger ModMAG M2000 is a high-accuracy electromagnetic flow meter designed for measuring conductive liquids such as water, wastewater, and industrial fluids. With no moving parts and zero pressure loss, it ensures long-term reliability, easy installation, and virtually no maintenance.
