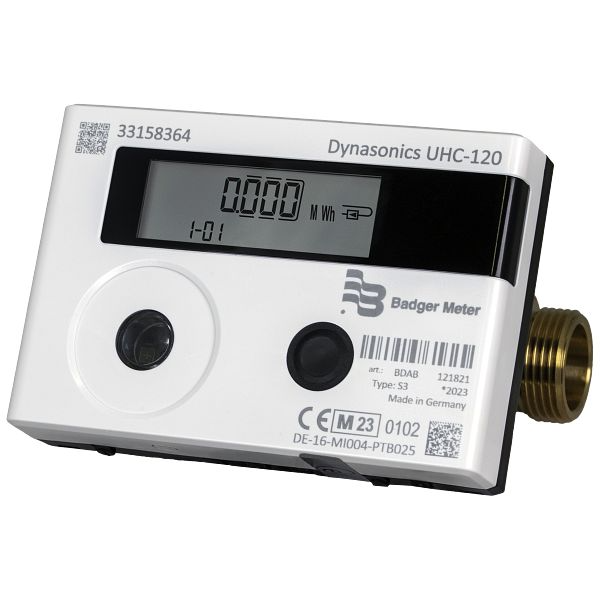

Badgermeter UHC-120 Ultrasonic Thermal Energy Meter
TF:
006231-HW-BM-031
Overview
The Dynasonics® UHC-120 Ultrasonic Thermal Energy meter measures consumed heating and/or cooling energy in multi-family residences, commercial and mixed-use buildings. As a static meter, there are no moving parts subject to wear.
| Size Range | ½…1-1/2 in. NPT, G3/4…G2 |
| Temperature Range | 41…194° F |
| Flow Range | 6.6…88 gpm |
| Pressure Range | Up to 232 PSI |
| Power Supply | Battery, 24V AC and 230V AC options |
By combining high-precision temperature sensors with ultrasonic flow measurement, the UHC-120 meter provides reliable thermal energy readings for a long duration.
- Agency Approvals. Class 2 accuracy approvals meet the Measuring Instruments Directive (MID) to EN1434 standards and Measurement Canada.
- Modular Communication. A variety of compatible communication options can be added or retrofitted as needed at any time.
- Compact Design. The meter combines flow and temperature sensors in a single package suitable for small spaces, such as fan coil units.
