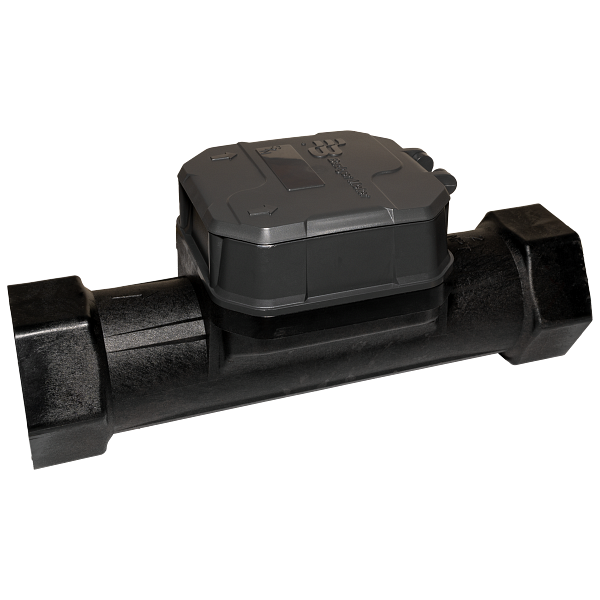

Badgermeter RS-900w Polymer Ultrasonic Flow Sensor
TF:
006233-HW-BM-033
Overview
With a simple design, the RS-900w Polymer Ultrasonic flow sensor is well suited as a long-term replacement for mechanical impeller meters in cold water applications. By using ultrasonic technology to measure flow, the RS-900w flow sensor measures a wider range of flow rates without any moving parts that wear and require replacement.
| Size Range | 1 in., 1.5 in., and 2 in. |
| Temperature Range | 32…140° F |
| Flow Range | 0.26...200 gpm |
| Accuracy | ± 2% of reading |
| Power Supply | 8…28V DC |
| Pressure | 200 psi (13.7 bar) |
By using ultrasonic technology, the RS-900w sensor can more accurately read flow over a wider range than mechanical impeller meters, which are traditionally used in irrigation.
- Wide Flow Range. Measuring low and high flows, these sensors capture variable flows of mixed-zone irrigation systems and seasonal variations.
- Robust Design. No moving parts to wear, fully potted electronics and 200 psi (13.7 bar) maximum pressure rating prolongs the sensor life.
- Zero Straight Run. Maintains performance when installed next to the master valve or near pipe elbows.
