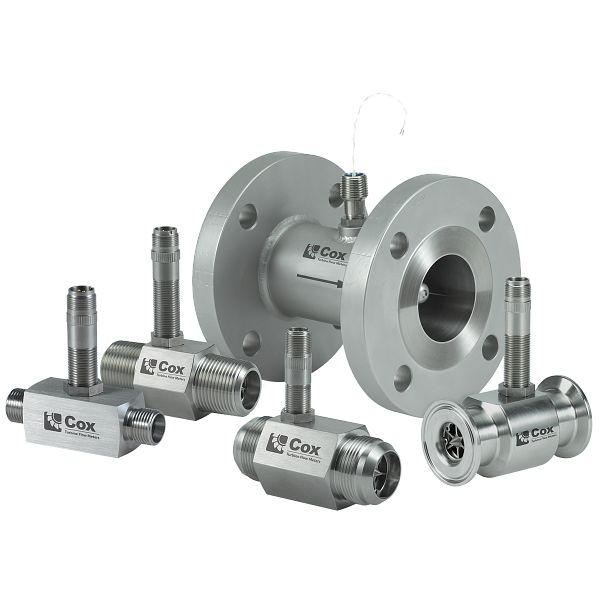

Badgermeter Cox Precision Turbine Meter
-
NG # 006214-HW-BM-014
Manufactured by:
The Cox® Precision Turbine Meter has unprecedented mechanical linearity, resulting in minimizing or negating temperature induced viscosity influence.
Specification
Size Range 0.5...2 in. Flow Range 0.05...310 gpm Pressure Range Up to 6000 PSI Temperature Range Up to 450° F Repeatability ±0.02% Linearity ±0.50% (±0.1% with flow processor) Frequency Output 1200...1500 Hz
Description
The Cox Precision turbine flow meter is able to accommodate the requirements of most applications, while offering wide flow ranges.
Improved Flow Range. Features an increased linear flow range with less sensitivity to fluid temperature or viscosity effect on the output.
Enhanced Performance. Built with a helical rotor design, resulting in exceptional speed-of-response with reduced pressure drop.
Comprehensive Pickoff Selection. Eliminates rotor drag while magnetic pickoffs provide for high temperature and remote powerless installations.
