Badger TFX-5000 Ultrasonic Clamp-on Flow Meter
TF:
006225-HW-BM-025
Overview

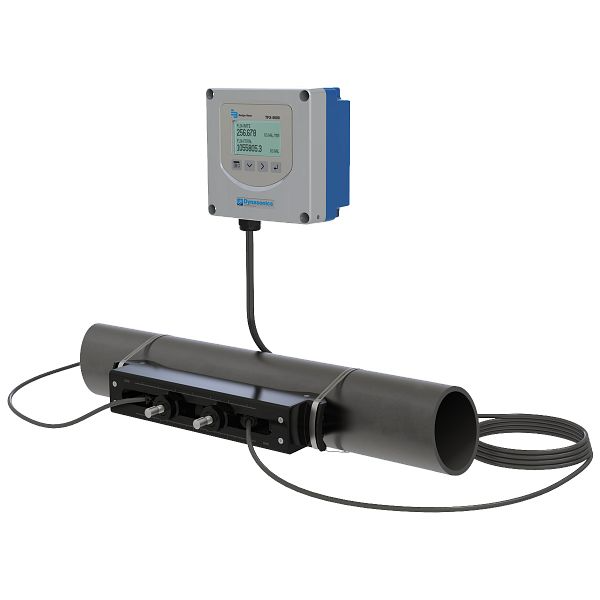

The Dynasonics® TFX-5000 Ultrasonic clamp-on flow meter is quickly and easily installed without cutting or tapping the pipe. This highly capable meter provides advanced features without breaking your budget.
| Size Range | 1/2...48 in. |
| Temperature Range | -40...350° F |
| Flow Range | 0.7...33,000 gpm |
| Accuracy | ± 0.5% ±0.025 ft/s (0.008 m/s) |
| Repeatability | ± 0.2% |
| Power Supply | 9...28V DC | 20...26 AC | 85...265 AC |
| Interface | BACnet MS/TP, BACnet/IP, Modbus RTU, Modbus TCP, EtherNet/IP, BEACON/AquaCUE Connectivity |
The Dynasonics TFX-5000 Ultrasonic clamp-on flow meter reduces installation time and cost because operations can continue during installation, which can be completed in under an hour by a single person.
