Badger Residential Ultrasonic Flow Meters
TF:
006226-HW-BM-026
Overview

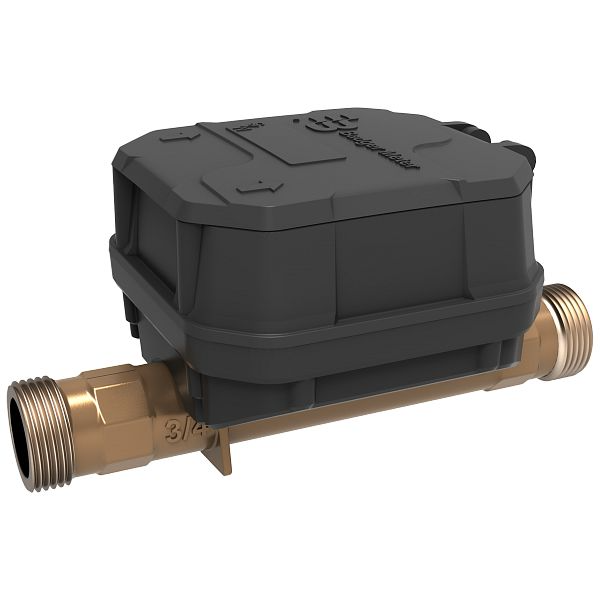

E-Series G2® Ultrasonic water meters use solid-state technology, ideal for residential and light commercial smart water applications. These meters have compact, encapsulated, weatherproof and UV-resistant housing and feature an easy-to-read, nine-digit LCD display.
| Size | 5/8...2 in. |
| Temperature Range | 34...140° F |
| Flow Range | 5/8 in. & 5/8 x 3/4in.: 0.04...30 gpm 3/4 in.: 0.04...35 gpm 1 in.: 0.16...62 gpm 1-1/2 in.: 0.40...100 gpm 2 in.: 0.50...160 gpm |
| Pressure Range | Up to 175 PSI |
| Power Supply | 3.6-volt lithium thionyl chloride battery (20-year battery life) |
| Accuracy | ±1.5% long-term sustained accuracy over the normal flow range ±3.0% from the extended low flow range to the minimum flow value |
E-Series G2® Ultrasonic inline meters for residential applications have no moving parts, which leads to improved reliability, increased performance and maximized revenue.
- Ease of Use. Display reports consumption, rate of flow, reverse-flow indication, temperature, pressure*, alarm conditions and firmware versions. The meter has field programmable registration and an hourly internal logging capacity of 160 days of data.
- Drive Revenue Gains. Offers long-term sustained accuracy within ±1.5% and extended low flow accuracy within ±3%. With high measurement accuracy, especially for low-flow conditions, these meters can help utilities limit unaccounted-for water and capture additional revenue over the course of their 20-year battery life.
