Badger Industrial Ultrasonic Flow Meters
TF:
006228-HW-BM-028
Overview

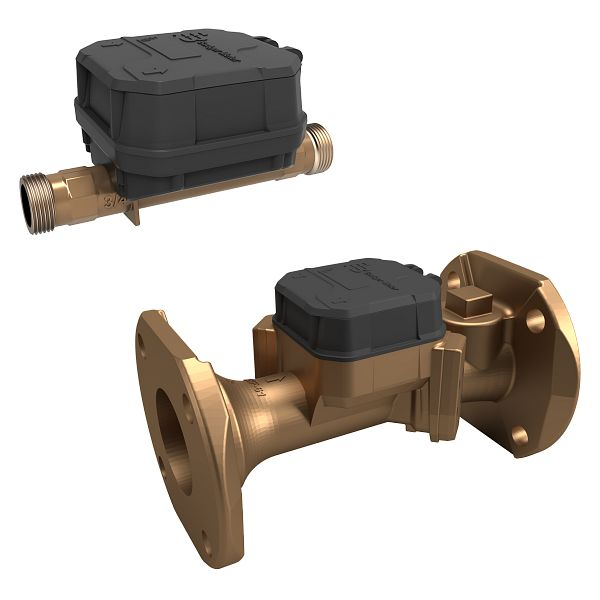

E-Series G2® Ultrasonic meter for industrial applications uses solid-state technology in compact, tamper-protected, weatherproof and UV-resistant housing, suitable for building and property management flow measurement and totalizing applications. With a variety of output options, these meters provide simple integration into building management systems or AquaCUE® Flow Measurement Manager.
| Size Range | 5/8…8 in. |
| Temperature Range | 34...140° F |
| Flow Range | 0.04...3500 gpm |
| Pressure Range | Up to 175 PSI |
| Power Supply | 3.6-volt lithium thionyl chloride battery (10-year battery life) |
| Accuracy | ±1.5% over the normal flow range ±3.0% from the extended low flow range to the minimum flow value |
E-Series inline ultrasonic meters for industrial applications perform under a variety of conditions.
- Wide Flow Range. Measuring low and high flows, these meters accurately capture variable flows common in commercial and residential buildings.
- Robust Design. No moving parts to wear and fully potted electronics prolongs the meter life.
- Smart Water Ready. Connects to AquaCUE® Flow Measurement Manager for greater visibility over water resources
