Badger Cox Manifold System
TF:
006223-HW-BM-023
Overview
Cox turbine flow meter Manifold Systems are designed for applications where extremely wide rangeability, automatic operation, and high accuracy are required, such as in jet engine cells, fuel control stands and flow meter calibration devices.
| Accuracy | +0.5% |
| Pressure Range | Up to 3000 psi |
| Power Requirements | 220…240V AC 50/60 Hz or 110…120V AC 50/60 Hz |
| Display | Red LED dot matrix 5.98 in. wide x 0.71 in. high |

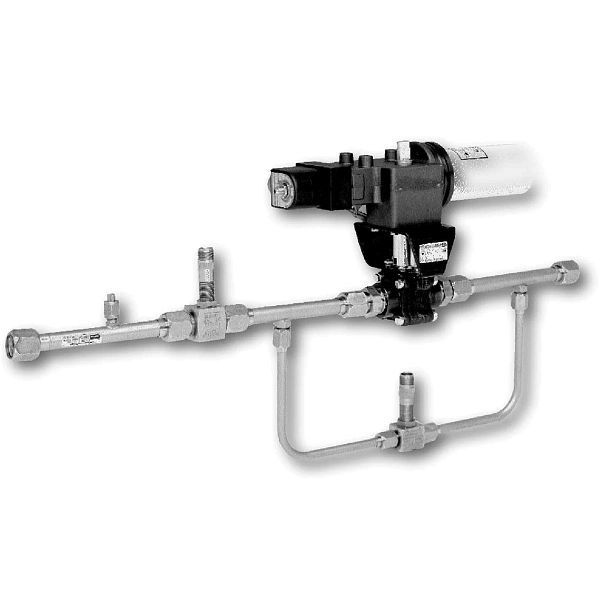

With the Series 44 M, flow ranges of 100:1, 1000:1 or higher are available for high-pressure systems. The system consists of a stainless steel manifold with flow straightening sections, two or three turbine flow meters and one (or two in a three-element system) air-operated electrically controlled shutoff valve. Operation of the manifold system is automatic and fail-safe as normally open valves are used.
