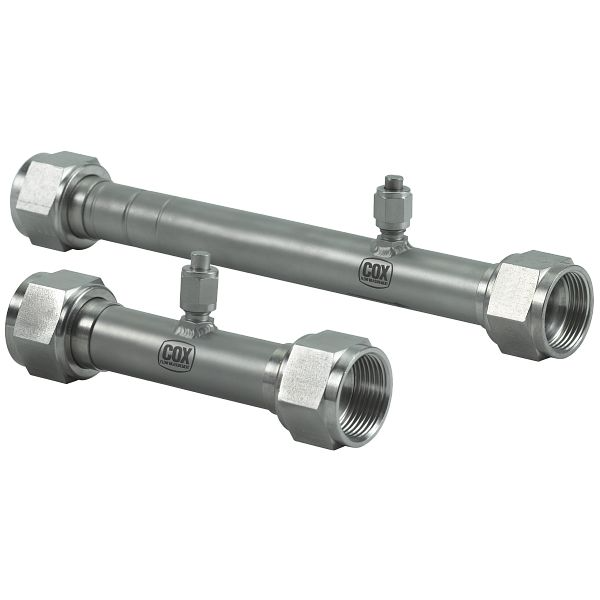

Badger Cox Flow Straightener
TF:
006222-HW-BM-022
Overview
Cox® Flow Straighteners are recommended for use with turbine flow meters to prevent false readings from fluid swirl. Installed upstream and downstream of a turbine meter, they are designed to reduce liquid rotation by means of a six-vane swirl eliminator and a straight runs of tubing.
| Size Range | 1/2...2 in. |
| Temperature Rating | Up to 100° F |
| Construction | 300 series stainless steel |
Cox Flow Straighteners offer a simple method of reducing or eliminating flow swirl, as a result of pipe bends and the location of valves, thermowells or pressure taps naturally found in piping systems.
- Application Versatility. Used in piping systems where flow meters are present, including systems with inadequate straight runs of piping, test benches or calibration stands and other applications.
- Streamlined Installation. Available in two options, flared or flanged connections, allowing for a quick and easy installation.
- Effective Performance. Cox Flow Straighteners are attached both upstream and downstream of the flow meter and are designed to reduce or eliminate fluid swirl caused by pumps, piping bends, vibrations, valves and other related process variables within a piping system.
