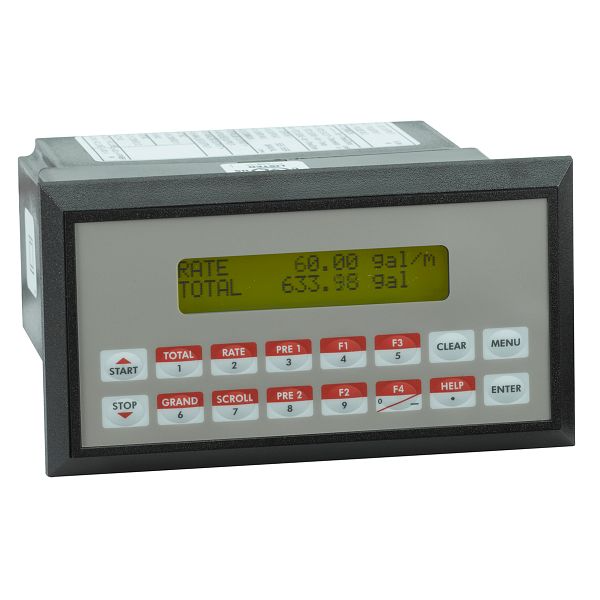

Badger Cox FC30 Flow Computer
TF:
006220-HW-BM-020
Overview
The Cox® FC30 Flow Computer was designed for gas and liquid applications with potentially varying process conditions. The ability to program the flow computer with universal viscosity curve (UVC) calibrations with a temperature input provides compensation by means of Strouhal-Roshko algorithms.
| Operating Temperature Range | 32...122 °F |
| Power Requirements | 110V AC: 85...127V rms at 50/60 Hz 220V AC: 170...276V rms at 50/60 Hz 10...14V DC, 14...28V DC: 300 mA Max |
| Linearization | 40-point linearization table |
| Internal Equations | Strouhal-Roshko, API 2540 and AGA-7 |
This versatile flow computer provides users with an easy to read display, programmable front panel and an intuitive firmware menu structure.
- Multiple Isolated Outputs. Analog and pulse outputs are isolated to protect flow data from electrical noise.
- 10 Selectable Fluid Tables. Preset tables allow for multiple fluid selections to minimize downtime between fluid changes.
- Precision Temperature Compensation Methods.Temperature fluid viscosity compensation and bore diameter corrections are accomplished using Strouhal/Roshko equations.
- EIA-232/485 Serial Communication. Data log, print or communicate with a host PC.
- Service/Test Mode. During a start-up, users can print out the system configuration, monitor inputs and exercise outputs.
- Batching. Several batching functions are available to provide compensation options in the batching process.
