AXEM Technology MBS UHF
TF:
003505-HW-AXEM-005
Overview

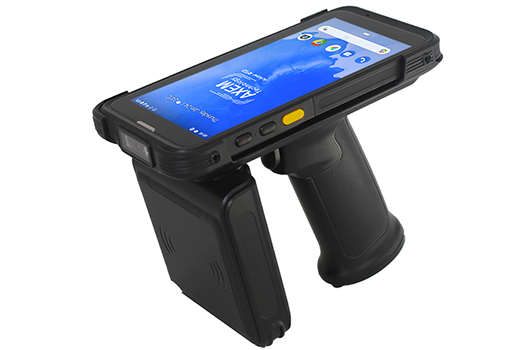

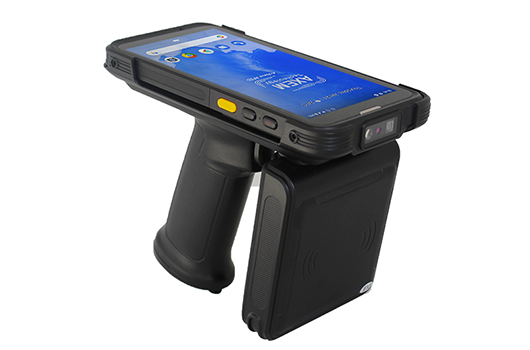

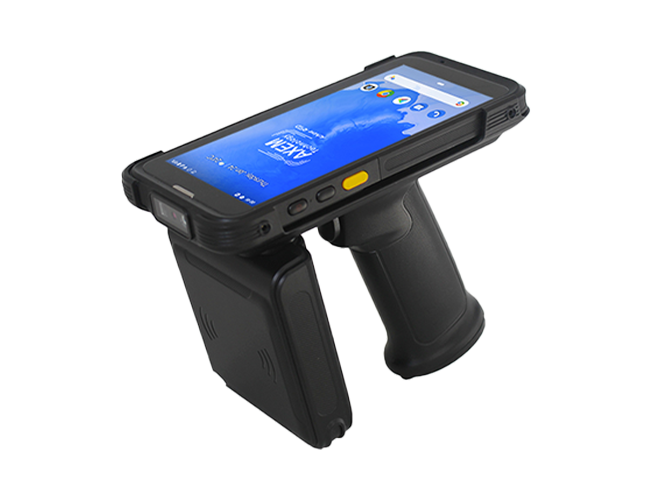

The MBS UHF is a mobile terminal designed for use in industrial environments. It combines UHF RFID, NFC and 1D/2D technologies to meet all your data capture needs.
| General characteristics | |
| Operating system | Android 11.0 |
| CPU | Qualcomm 2.0 GHz Octa-core |
| Memory | RAM 3GB + ROM 32GB / option: 4GB + 64GB |
| Extended storage | Support Micro SD card up to 128GB |
| Dimensions | Height: 177mm, Width: 76mm, Length: 160mm |
| Weight | env. 800g |
| Screen | 5.5’’(18:9) high definition, IPS LTPS 1440*720 |
| Battery | Removable 4420 mAh (typ) / 4300 mAh (min) MBS battery, optional 5200 mAh gun battery, supports QC3.0 and RTC Standby time: up to 490 hours (main battery only; WiFi: up to 470 hours; 4G: up to 440 hours). Continuous use: more than 12 hours (depending on user environment) Charging time: 2.5 hours with standard adapter and USB cable |
| Ports | USB3.0, Type-C, OTG |
| Buttons | 1 power button, 2 scan buttons, 2 volume buttons, 1 PTT button |
| Other - general | 2 microphones, 1 for noise reduction Sensors: gravity sensor, proximity sensor, light sensor, accelerometer sensor, vibration motor LED indicator/power, charging, status indicator |
| Wireless communication | |
| Wifi | 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 5.0/4.1+HS/4.0/3.0+HS/2.1+EDR |
| 3G / 4G | WWAN (Europe, Asie) : 2G: 850/900/1800/1900MHz, 3G: CDMA EVDO: BC0, WCDMA: 850/900/1900/2100MHz, TD-SCDMA: A/F(B34/B39), 4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41 WWAN (Amérique) : 2G: 850/900/1800/1900MHz, 2G: 850/900/1800/1900MHz, 4G: B2, B4, B5, B7, B12, B17, B38 |
| GPS | GPS/AGPS, GLONASS, BeiDou, internal antenna |
| Vo-LTE | Support for HD Vo-LTE video voice calls |
| Usage environment | |
| Operating temperature | -20°C à +50°C |
| Storage temperature | -40°C à +70°C |
| Humidity | 5% RH - 95% RH sans condensation |
| Protection index | IP65 |
| Drop specification | Multiple 1.8 m drops (at least 20 times) onto concrete within the operating temperature range |
| Tumble Specification | 1000 x 0.5m drop at room temperature |
| ESD | Air discharge ±15KV, conductive discharge ±8KV |

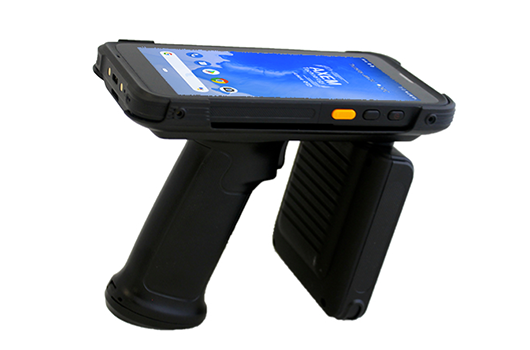

The UHF bracket is screwed to the MBS. Device communication via pins is a key advantage!
