AXEM Technology MBS PDA
TF:
003506-HW-AXEM-006
Overview

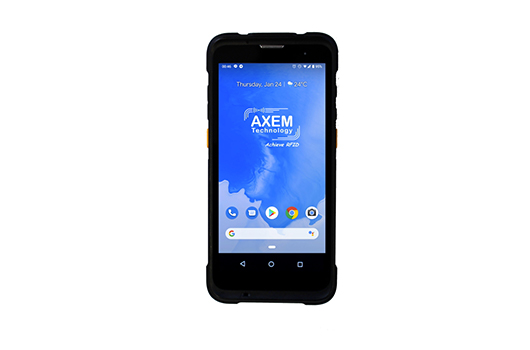

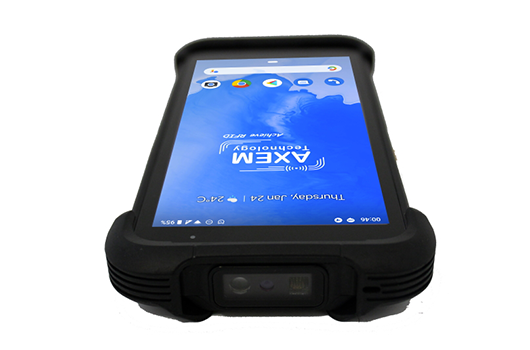

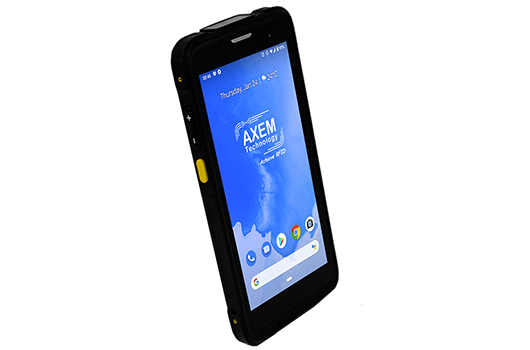

The MBS is a rugged terminal designed for use in industrial environments. It is indeed protected against dust, water projections and can resist to temperatures ranging from -40°C to +70°C.
| General specifications | |
| Operating System | Android 11 / Android 13 |
| CPU | Qualcomm 2.0 GHz Octa-core |
| Memory | 3GB+32GB |
| Extended storage | Supports up to 128 GB Micro SD card |
| Dimensions | 160 x 76 x 15.5mm |
| Weight | 287g (device with battery) |
| Display | 5.5-inch high definition full display (18:9), IPS LTPS 1440*720 Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Battery | 4 420 mAh removable main battery Standby: over 490 hours (WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours by standard adaptor and USB cable |
| I/O Ports | USB3.0, Type-C, OTG, extended thimble |
| Keys | 1 power key, 2 scan keys , 2 volume keys , 1 configurable key |
| Speaker | Support |
| Vibrator | Support |
| Microphone | 2 Microphones, 1 for noise reduction |
| Sensors | Gravity sensor, proximity sensor, light sensor, accelerometer sensor, vibration motor |
| Indicator LED | Power, charging, status indicator |
| Card slot | slot for SIM card, 1 slot for SIM or TF card |
| Camera | Rear 13MP Autofocus with flash, support for image and video formats |
| Wireless communication | |
| Wifi | 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 5.0/4.1+HS/4.0/3.0+HS/2.1+EDR |
| Bluetooth 5.0/4.1+HS/4.0/3.0+HS/2.1+EDR | WWAN (Europe, Asie) : 2G: 850/900/1800/1900MHz, 3G: CDMA EVDO: BC0, WCDMA: 850/900/1900/2100MHz, TD-SCDMA: A/F(B34/B39), 4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41 WWAN (Amérique) : 2G: 850/900/1800/1900MHz, 2G: 850/900/1800/1900MHz, 4G: B2, B4, B5, B7, B12, B17, B38 |
| GPS | GPS/AGPS, GLONASS, BeiDou, internal antenna |
| Support Vo-LTE HD video voice call | Support Vo-LTE HD video voice call |
| User Environment | |
| Operating temperature | -20°C to +50°C |
| Storage temperature | -40°C to +70°C |
| Humidity | 5% RH ~95°RH non condensing |
| Protection grade | IP65 per IEC sealing specifications |
| Drop Specification | Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range Multiple 2.4m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber bumper 1000 x 0.5m / 1.6ft falls at room temperature |
| ESD | ±15KV air discharge, ±8KV conductive discharge |
| UHF (option MagSled) | |
| Engine | xx |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Power | 1W (30 dBm, +5 dBm to +30 dBm adjustable) |
| HF/NFC | |
| Frequency | 13,56MHz |
| Data col | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4cm |
| Barcode 1D/2D (option) | |
| 1D/2D Barcode Scanner | SE4710 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.. |
This professional device allows the reading of RFID NFC tags and 1D/2D barcodes. Intended for intensive use, it has a long-lasting and removable battery: you will never run out of battery!

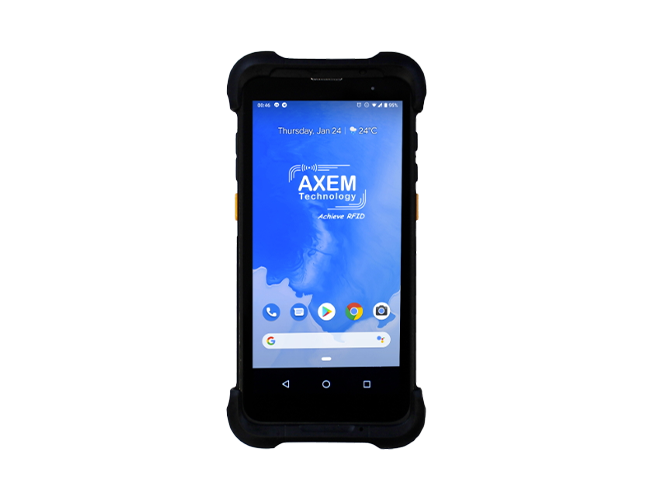

For a maximum user experience, we offer a wide range of accessories for the MBS: charging cradle, strap, bumpers
