AXEM Technology AT880
TF:
003504-HW-AXEM-004
Overview

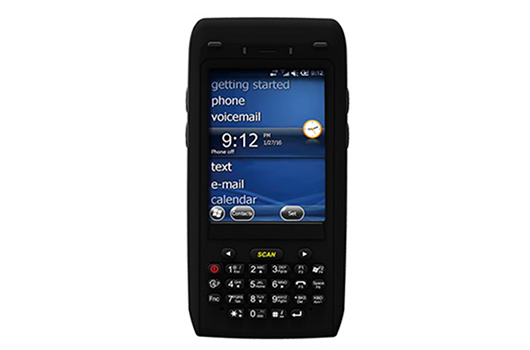

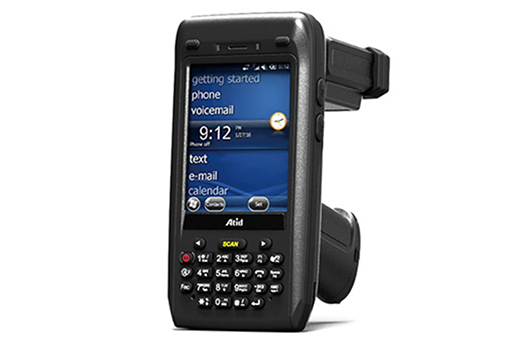

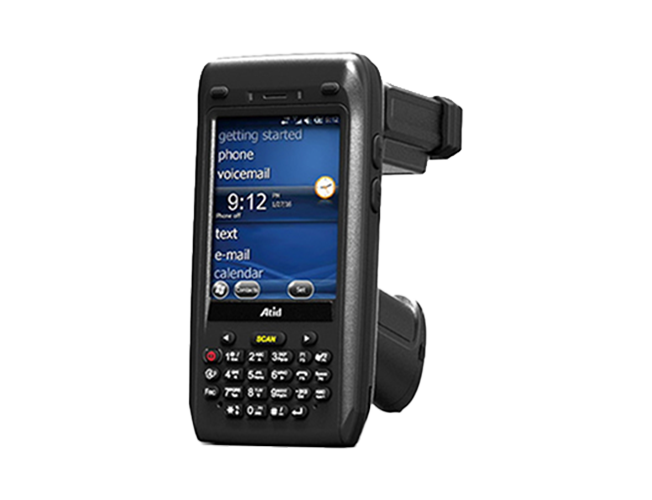

The AT880 is a mobile terminal equipped with UHF and HF/NFC technologies and 1D/2D barcode.
| Physical specifications | |
| Operating System | Windows CE 5.0 / Windows Embedded handheld 6.5 |
| Processor | Marvell™ PXA 320 806MHz |
| Memory | 512MB RAM / 512MB ROM |
| Dimensions | 79 (W) x 159 (L) x 27.7 (35.2) (H) mm |
| Weight | 280g (PDA only, without battery) |
| Display | 3.5" QVGA with Backlight, TFT LCD, 240×320Pixel, 262K Color |
| Battery | 3.7V 2,970mAh Lithium Polymer battery (Rechargeable) 3.7V 80mAh Lithium Polymer backup battery (Rechargeable) Input AC100V ~ 240V / Output DC 5V 3A Power Adapter |
| I/O Ports | USB 1.1 Client / USB Host & Serial (RS-232) via gender cable or Cradle |
| Keys | 1Micro SD Slot (SDHC), 1SIM Slot, 1 SAM Slot |
| Camera | 3Mp. Auto Focus with Flash |
| Audio | Phone Receiver, Speaker, Ear Jack, Microphone |
| Wireless communication | |
| Wifi | 802.11 a / b / g / n Option |
| Bluetooth | Bluetooth Class II, v2.1 + EDR |
| 3G / 4G | MODEM 3G (GSM / GPRS / EDGE / WCDMA / HSPA+) |
| GPS | Internal Antenna (GPS + Glonass Option) |
| User Environment | |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -30°C to +70°C |
| Humidity | 95% relative humidity not condensation |
| Protection grade | IP65 Drop Specification Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range |
| Certification | CE, FCC, CCC, IC |
| Data collection | |
| RFID Ultra High Frequency | Frequency : CE 865MHz ~ 868MHz FCC 902MHz ~ 928MHz Reading range : 0M ~ 5M (According to Tag & Environment) Writing range : 0M ~ 0.5M (According to Tag & Environment) RF output : 1W (MAX) Protocol : GEN2, ISO / IEC 18000 - 6C Special function : Anti - Collision |
| RFID High Frequency | Applied RFID Tag : ISO15693, MIFARE, ISO14443 A / B (Option) Reading range : According to Tag 0Cm ~ 5Cm (Internal or External) |
| Barcode 1D/2D | |
| Barcode Scanner | 1D or 2D barcode Scanner |
| Additional features | |
| Notification | Vibrator and LED, Speaker |
| Standard Interface | USB 1.1 Host / USB Client / DC Power Jack / Extra Battery Charger / Serial (RS232) via gender cable |
| Ethernet Interface | RJ-45 Ethernet Interface (Option) |
The device features a 2,970mAH rechargeable battery for long autonomy.
