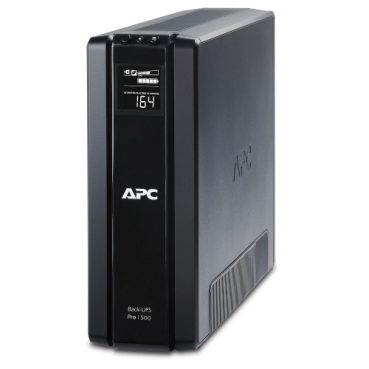

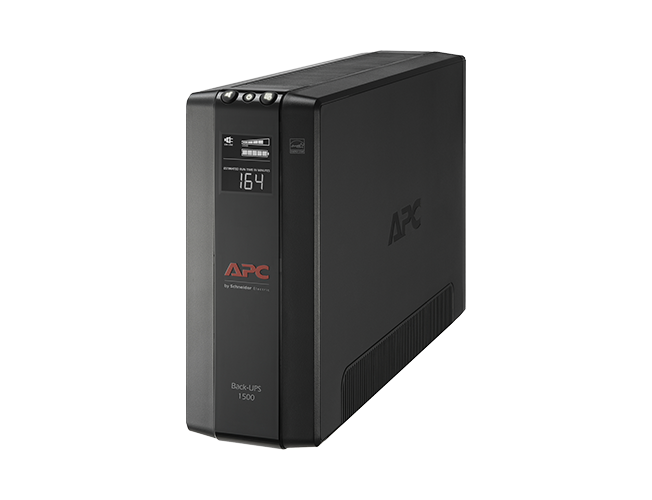

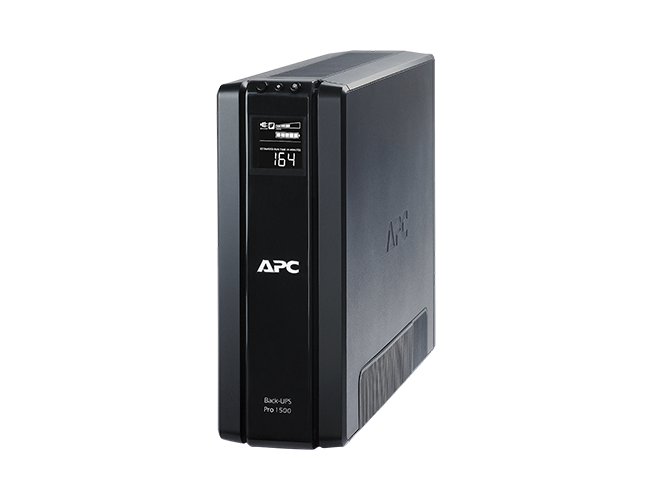

APC Back-UPS Pro, 1500VA/865W, Tower, 120V, 10x NEMA 5-15R outlets, AVR, LCD, User Replaceable Battery
00351-HW-SCHNEIDER-051
Overview
Protect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS Pro 1500VA. APC Back-UPS Pro provide premium backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With 10 outlets, this desktop UPS (uninterruptible power supply) provides seamless battery power to connected electronics.
| Lead time | Usually in Stock |
|---|
Run time for load W information_stroke Min-max: 87-865 W | 3min 50s
|
|---|---|
Max. Capacity Used information_stroke |
100 %
|
| Main Input Voltage | 120 V |
| Main Output Voltage | 120 V |
| Kw Rating | 865 W |
| Rated power in VA | 1500 VA |
| Product or Component Type | Uninterruptible power supply (UPS) |
| Input Connection Type | NEMA 5-15P |
| output connection type | 5 NEMA 5-15R 5 NEMA 5-15R surge |
| Cable length | 6 ft (1.8 m) |
| Battery Type | Lead-Acid battery |
| Range of Product | Back-UPS Pro |
| Run Time |
|
|---|---|
| Efficiency |
|
| Included Battery Modules | 1 |
| Battery Slots Empty | 0 |
| Typical recharge time | 8 h |
| RBC Quantity | 1 |
| Battery Voltage | 24 V |
| Battery Capacity | 9.0 Ah |
| Battery Charge Power (Watts) | 23 W rated |
| Battery life | 3…5 year(s) |
| Replacement battery |
|
| Battery graph comments | This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables including battery age, battery charge level, environmental conditions and characteristics of the connected load. |
| Extendable Run Time | 0 |
| Provided equipment | User Manual USB cable |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Height | 11.85 in (30.1 cm) |
|---|---|
| Width | 4.41 in (11.2 cm) |
| Depth | 15.04 in (38.2 cm) |
| Net Weight | 26.7 lb(US) (12.1 kg) |
| Mounting preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Input Frequency | 50/60 Hz +/- 3 Hz auto-sensing |
|---|---|
| Plug standard | NEMA 5-15P |
| Max Configurable Power (Watts) | 865 W |
|---|---|
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz sync to mains |
| Topology | Line Interactive |
| Wave type | Stepped approximation to a sinewave |
| Maximum configurable power in VA | 1500 VA |
| Transfer Time | 8ms typical : 12ms maximum |
| Product Certifications | NOM TÜV ENERGY STAR V2.0 (USA) |
|---|---|
| Equipment protection policy | Lifetime : $150000 |
| Ambient air temperature for operation | 32…104 °F (0…40 °C) |
|---|---|
| Relative Humidity | 0…95 % |
| Operating altitude | 0...3000 ft |
| Ambient Air Temperature for Storage | 5…113 °F (-15…45 °C) |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…5000 ft (0.0000000000…1524.0000000000 m) |
| Acoustic level | 45 dBA |
| control panel | Multi-function LCD status and control console |
|---|---|
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rating | 354 J |
|---|---|
| Filtering | Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: in |
| Let Through Voltage Rating | 300 V |
| Category | 11309 - APC RESALE PRODUCTS |
|---|---|
| GTIN | 731304268772 |
| Returnability | No |
| Country of origin | PH |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.24 in (38.7 cm) |
| Package 1 Width | 19.21 in (48.8 cm) |
| Package 1 Length | 9.37 in (23.8 cm) |
| Package 1 Weight | 29.43 lb(US) (13.35 kg) |
| SCC14 | 10731304268779 |
| Warranty | 3 years repair or replace |
|---|
The 900w capacity is ideal for workstations and additional electronics, keeping you connected and productive during power fluctuations. Add up to one external battery pack to increase battery runtime to connected devices when utility power is lost. Model BR24BPG sold separately. Use the three soft-touch buttons on the front to easily configure settings. Included PowerChute software is available to set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. The LCD display provides details concerning power-load of connected devices, battery runtime based on connected devices, the power level of the battery and more.
