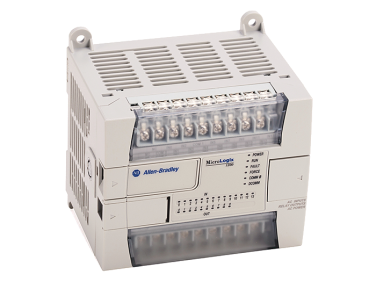

Allen‑Bradley 1762-L24BWAR MicroLogix 1200 24
TF:
004001-HW-ALLEN-O01
Overview
MicroLogix 1200, 120/240V ac power, (10) standard 24V dc and (4) Fast 24V dc digital inputs, (10) relay outputs, with Programming/HMI Port
| Display | No |
| Mounting | DIN Rail, Panel Mount |
| Enclosure | IP20 |
| Communication | DF1, DH-485, Modbus RTU, ASCII |
| Power Supply | 120/240V AC |
| Output Signal | Relay |
| Height | 90 |
| Input Signal | 24V DC |
| Sub Brand | MicroLogix 1200 |
| Special Features | 1 HSC, Up to 6 Expansion I/O |
| Operating Temperature | 0…55 °C (32…131 °F) |
| Interface | (2) RS-232C Port |
| Type | Controller |
| Width | 110 |
| Memory | 6 KB |
| UNSPSC | 32151705 |
Rockwell Automation announces that as of August 20, 2021, the MicroLogix 1200, 120/240V ac power, (10) standard 24V dc and (4) Fast 24V dc digital inputs, (10) relay outputs, with Programming/HMI Port will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s).
