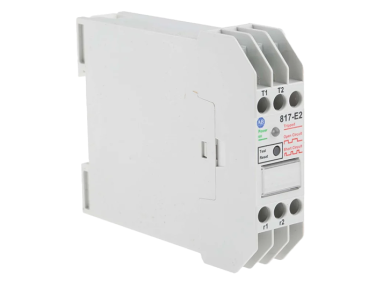

Allen Bradley Temperature Monitoring Relay, DPST, DIN Rail
TF:
004059-HW-ALLEN-O59
| Monitoring Application | Temperature |
| Contact Configuration | DPST |
| Mounting Type | DIN Rail |
| Temperature Sensitivity | Overtemperature |
| Series | 817 |
| Maximum Operating Temperature | +60°C |
| Width | 22.5mm |
| Height | 89mm |
| Length | 98.8mm |
| Dimensions | 98.8 x 22.5 x 89mm |
| Minimum Operating Temperature | -25°C |
| Operating Temperature Range | +60°C |
| Standards Met | CE, CSA, UL |
Thermistor Protection Relays offer protective functions that are easily added and applied to motor control circuits. Typical applications include VFD Controlled Motors, Transformers, Bearings and Compressors.
Monitors over temperature
Connection of up to six PTC thermistors in series
Open and short circuit detection
Short circuit protected signal input
Status indication LED’s
No settings necessary
Compact 22.5mm DIN rail mount housing
Two versions available: Type E1, temperature protection, automatic reset. Type E2, temperature protection, status storage, auto, manual and remote reset options
