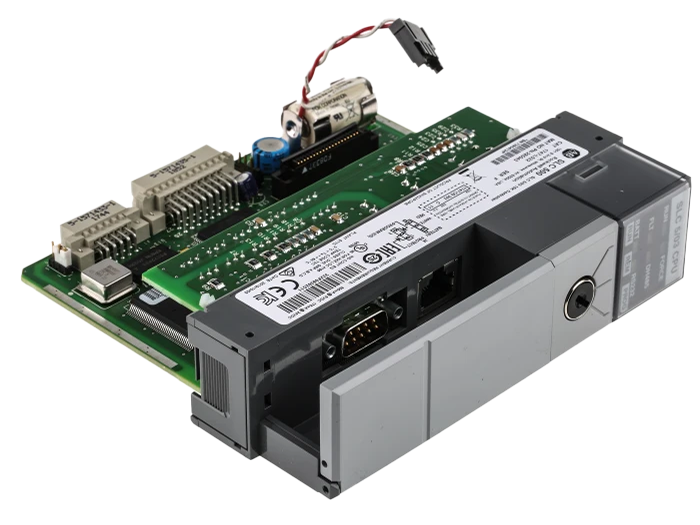

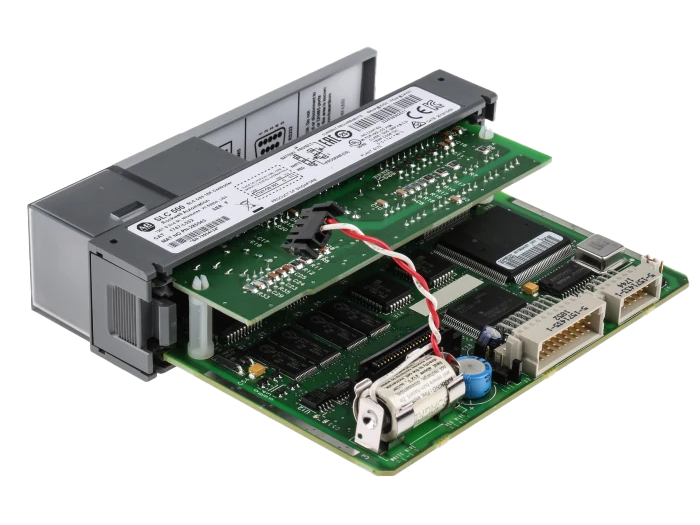

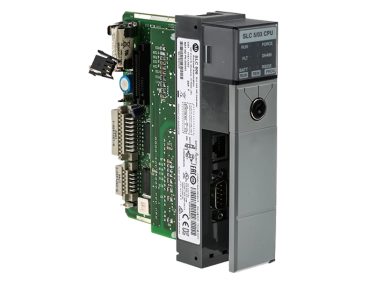

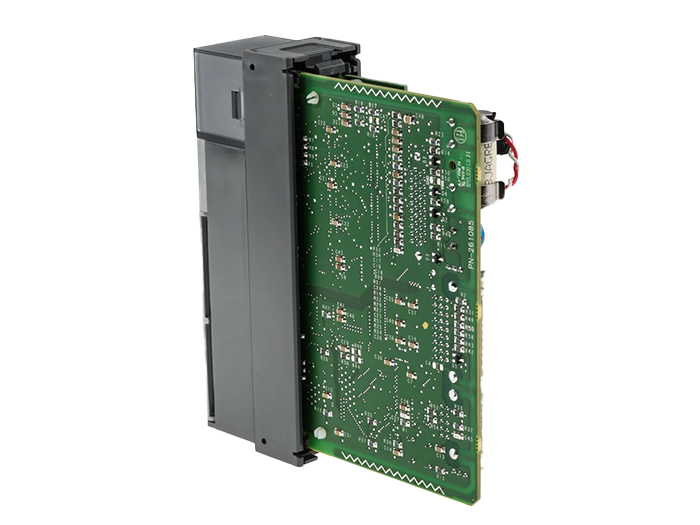

Allen Bradley SLC 500 Series PLC CPU for Use with SLC 500 Series, Digital Output, Digital Input
TF:
004027-HW-ALLEN-O27
Overview
The Allen-Bradley SLC 500 is a small chassis-based family of programmable controllers, discrete, analogue, and speciality I/O, and peripheral devices.
| Manufacturer Series | SLC 500 |
| Output Type | Digital |
| For Use With | SLC 500 Series |
| Input Type | Digital |
| Voltage Category | 5 → 24 V |
| Network Type | Ethernet |
| Interface | Ethernet |
| Dimensions | 145 x 35 x 142 mm |
| Communication Port Type | Ethernet, RS232 |
| Memory | 32000 Words |
| Programming Interface | Computer |
| Minimum Operating Temperature | 0°C |
| Mounting Type | Chassis Mount |
| Width | 35mm |
| Battery Backup | Yes |
| Display Included | Yes |
| Maximum Operating Temperature | +60°C |
| Output Current | 1 mA |
| Number of Communication Ports | 2 |
| Programming Language Used | Ladder Logic |
| Program Capacity | 28000 Words |
| Depth | 142mm |
| Length | 145mm |
The SLC 500 family delivers power and flexibility with a wide range of communication configurations, features, and memory options. The RSLogix 500 ladder logic programming package provides flexible editors, point-and-click I/O configuration, and a powerful database editor, as well as diagnostic and troubleshooting tools to help you save project development time and maximize productivity.
