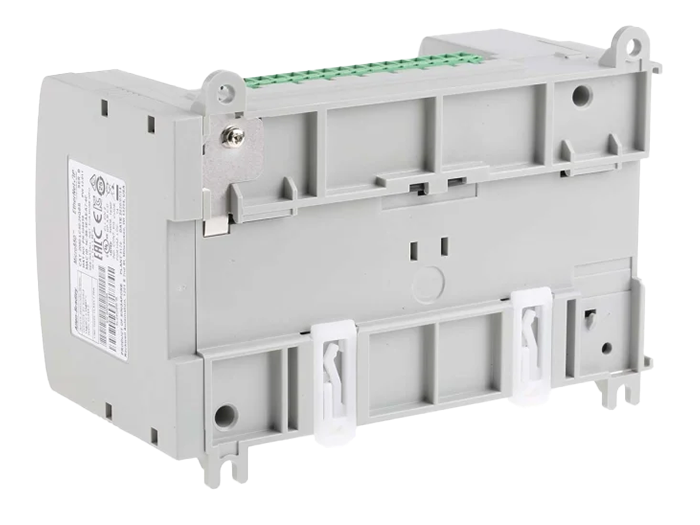

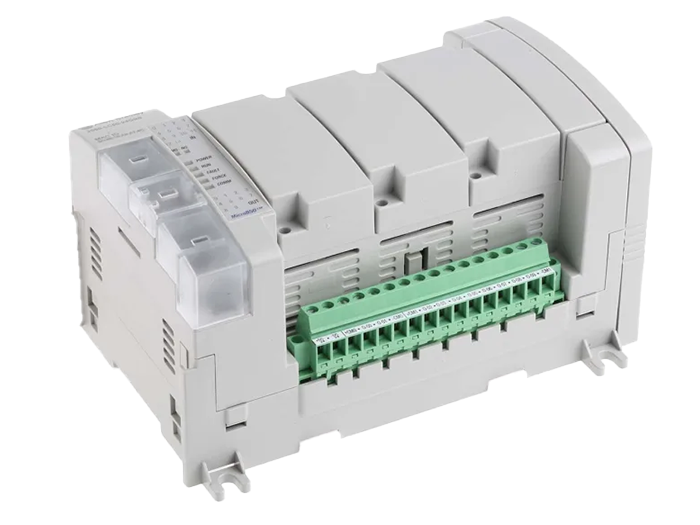

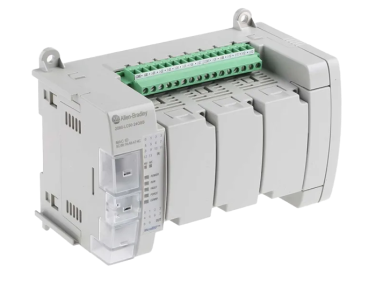

Allen Bradley Micro850 Series PLC CPU for Use with Micro800 Series, Relay Output, 14-Input, AC, DC Input
004011-HW-ALLEN-O11
Overview
Allen Bradley Micro850 Programmable Logic Controller. Experience superior I/O performance, customisation, and versatility with the Micro850TM Programmable Logic Controller by Allen Bradley, designed to be the leading controller of the Micro800 family.
| Manufacturer Series | Micro850 |
| Number of Inputs | 14 |
| Output Type | Relay |
| For Use With | Micro800 Series |
| Input Type | AC, DC |
| Number of Digital Inputs | 10 |
| Number of Outputs | 10 |
| Voltage Category | 24 V dc |
| Number of Digital Outputs | 14 |
| Network Type | Ethernet, USB |
| Interface | Ethernet |
| Dimensions | 158 x 90 x 80 mm |
| Mounting Type | DIN Rail |
| Minimum Operating Temperature | -20°C |
| Width | 90mm |
| Length | 158mm |
| Depth | 80mm |
| Communication Port Type | RS232, RS485, Serial |
| Maximum Operating Temperature | +65°C |
| Number of Communication Ports | 2 |
| Output Current | 8.8 mA |
These expandable controllers are specially designed to handle larger, stand-alone machine control applications which require greater I/O capabilities and flexible communications. They feature space-saving Plug-in, Expansion I/O modules, and removable terminal blocks for enhanced convenience. These programmable controllers are also equipped with the same form factor, Plug-in support, instruction/data size and embedded motion capabilities as the Micro830 devices. Micro850 PLC’s include extra communication connection options through an embedded 10/100 Base-T Ethernet port. They are expandable up to a maximum of 132 digital I/O points to give you optimal performance and functionality. For ease-of-installation Micro800 system control devices share common software and accessories.
