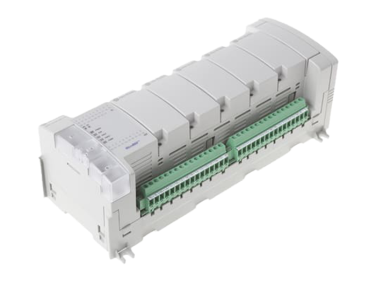

Allen Bradley Micro850 Series PLC CPU for Use with Micro800 Series, 28-Input, AC, DC Input
TF:
004007-HW-ALLEN-O07
Overview
Manage and automate manufacturing processes and robotic devices with this high-performance programmable logic controller (PLC) from Rockwell Automation's Allen Bradley range.
| Manufacturer Series | Micro850 |
| Number of Inputs | 28 |
| For Use With | Micro800 Series |
| Input Type | AC, DC |
| Number of Outputs | 20 |
| Voltage Category | 24 V dc |
| Network Type | Ethernet, USB |
| Interface | Ethernet |
| Minimum Operating Temperature | -20°C |
| Dimensions | 238 x 90 x 80 mm |
| Maximum Operating Temperature | +65°C |
| Communication Port Type | RS232, RS485, Serial |
| Depth | 80mm |
| Length | 238mm |
| Width | 90mm |
| Number of Analogue Inputs | 28 |
| Mounting Type | DIN Rail |
| Number of Communication Ports | 2 |
| Output Current | 8.8 mA |
| Number of Analogue Outputs | 20 |
This device has 28 input and 20 output ports for multifunctional control of equipment and devices. It also has several expansion ports to increase the number of functions you can control with it. For easy communication and configuration, it features embedded USB 2.0 (universal serial bus) ports as well as RS232/485 serial ports. You'll find this device used in manufacturing environments to control heavy-duty industrial machinery.
