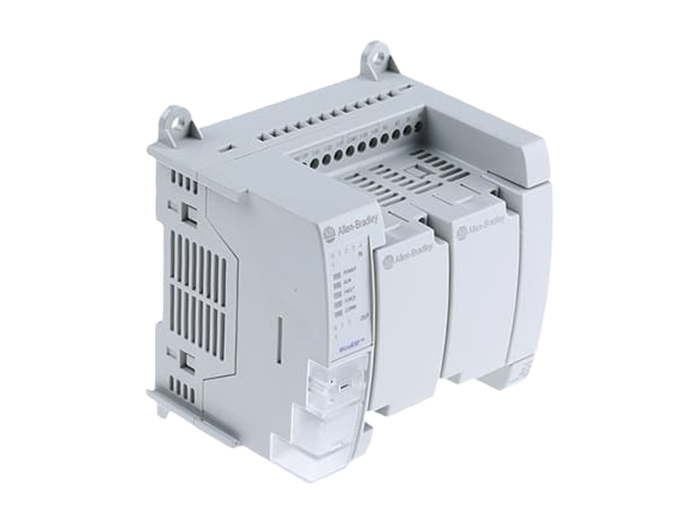

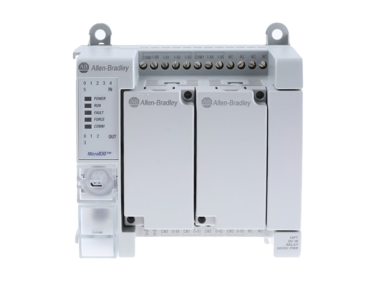

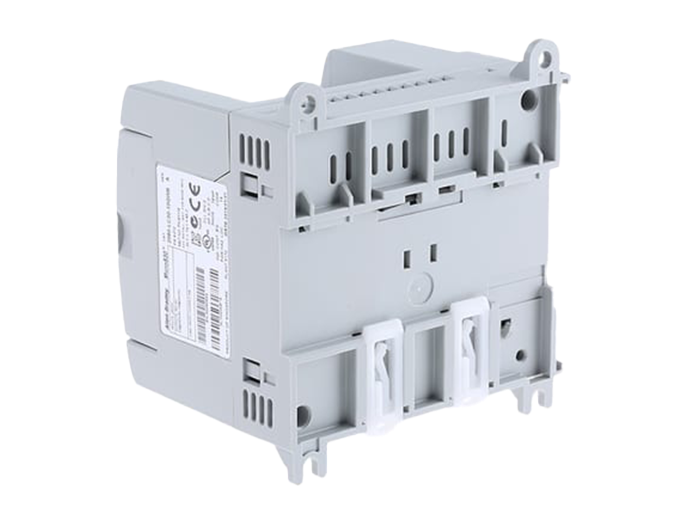

Allen Bradley Micro830 Series PLC CPU for Use with Micro800 Series, Digital Output, 6-Input, Digital Input
TF:
004008-HW-ALLEN-O08
Overview
These cost-effective controllers are specially designed for stand-alone machine control applications which require flexible communications and I/O capabilities.
| Manufacturer Series | Micro830 |
| Number of Inputs | 6 |
| Output Type | Digital |
| For Use With | Micro800 Series |
| Input Type | Digital |
| Number of Outputs | 4 |
| Voltage Category | 24 V dc |
| Network Type | ModBus |
| Kit Included | Yes |
| Communication Port Type | RS232, RS485 |
| Programming Language Used | Function Block, Ladder Logic, Structured Text |
| Minimum Operating Temperature | -20°C |
| Width | 100mm |
| Programming Interface | Operating Panel |
| Memory | 8 kB |
| Depth | 80mm |
| Program Capacity | 4 kB |
| Length | 90mm |
| Maximum Operating Temperature | +65°C |
| Dimensions | 90 x 100 x 80 mm |
| Number of Communication Ports | 1 |
They can support up to 88 Input/Output points with high performance I/O, interrupts, and Pulse Train Output motion (PTO). These programmable controllers allow easy incorporation of up to 5 plug-in modules, which provide greater personalisation and increased functionality without adding to the product footprint. They offer simplified communication via the serial port and removable terminal blocks on most models to reduce wiring time.
