Allen Bradley Micro830 Series PLC CPU for Use with Micro800 Series, Digital Output, 28-Input, Digital Input
TF:
004019-HW-ALLEN-O19
Overview

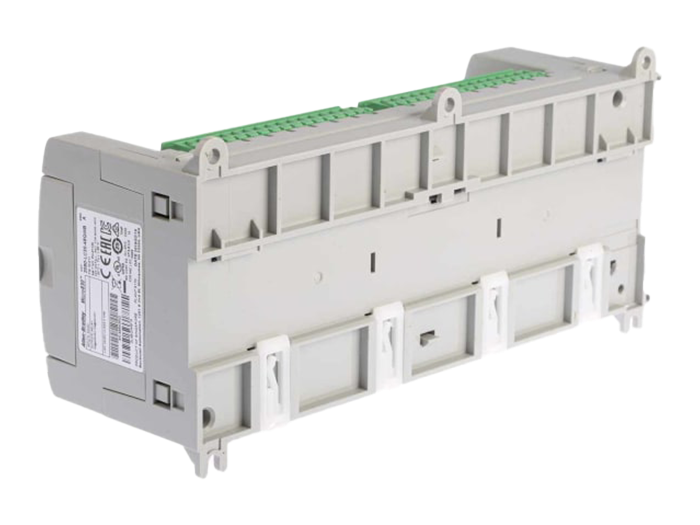

Allen Bradley Programmable Logic Controller, 28 Inputs, 20 Outputs - Micro830 Series - 2080-LC30-48QWB
| Manufacturer Series | Micro830 |
| Number of Inputs | 28 |
| Output Type | Digital |
| For Use With | Micro800 Series |
| Input Type | Digital |
| Voltage Category | 24 V dc |
| Number of Outputs | 20 |
| Network Type | ModBus |
| Kit Included | Yes |
| Communication Port Type | RS232, RS485 |
| Dimensions | 90 x 230 x 80 mm |
| Memory | 8 kB |
| Programming Interface | Operating Panel |
| Width | 230mm |
| Minimum Operating Temperature | -20°C |
| Length | 90mm |
| Depth | 80mm |
| Maximum Operating Temperature | +65°C |
| Number of Communication Ports | 1 |
| Programming Language Used | Function Block, Ladder Logic, Structured Text |
| Program Capacity | 4 kB |

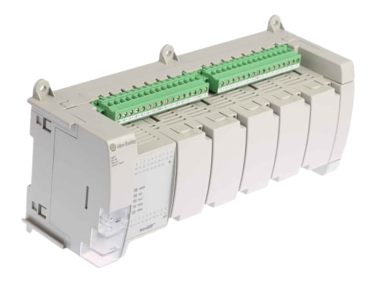

Need a control solution for your small application process? This programmable logic controller (PLC) from Rockwell Automation's Allen Bradley range offers just that. You can incorporate as many as five plug-in modules into this central processing unit (CPU), which lets you personalise the controller and increase its functionality. The unit offers 28 inputs for connecting modules such as pushbuttons, switches and temperature sensors, and there are 20 outputs for linking devices like relays, motor starters or lights.
