Allen Bradley Micro830 Series PLC CPU for Use with Micro800 Series, Digital Output, 10-Input, Digital Input
004021-HW-ALLEN-O21
Overview

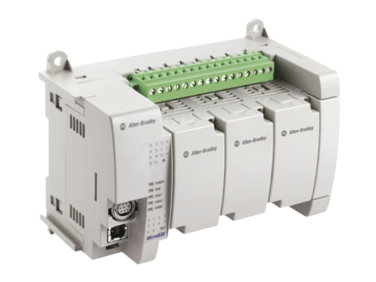

Allen Bradley Micro830 PLC – CPU, For a smart control system that delivers optimal customisation, reliability, and security look no further than the Micro830 Programmable Logic Controller by Allen Bradley.
| Manufacturer Series | Micro830 |
| Number of Inputs | 10 |
| Output Type | Digital |
| For Use With | Micro800 Series |
| Input Type | Digital |
| Voltage Category | 24 V dc |
| Number of Outputs | 6 |
| Network Type | ModBus |
| Kit Included | Yes |
| Dimensions | 90 x 100 x 80 mm |
| Minimum Operating Temperature | -20°C |
| Programming Interface | Operating Panel |
| Communication Port Type | RS232, RS485 |
| Width | 100mm |
| Memory | 8 kB |
| Program Capacity | 4 kB |
| Depth | 80mm |
| Length | 90mm |
| Maximum Operating Temperature | +65°C |
| Number of Communication Ports | 1 |
| Programming Language Used | Function Block, Ladder Logic, Structured Text |
These cost-effective controllers are specially designed for stand-alone machine control applications which require flexible communications and I/O capabilities. They can support up to 88 Input/Output points with high performance I/O, interrupts, and Pulse Train Output motion (PTO). These programmable controllers allow easy incorporation of up to 5 plug-in modules, which provide greater personalisation and increased functionality without adding to the product footprint. They offer simplified communication via the serial port and removable terminal blocks on most models to reduce wiring time.
