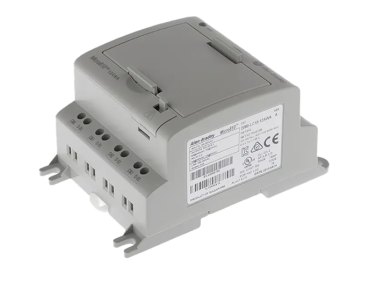

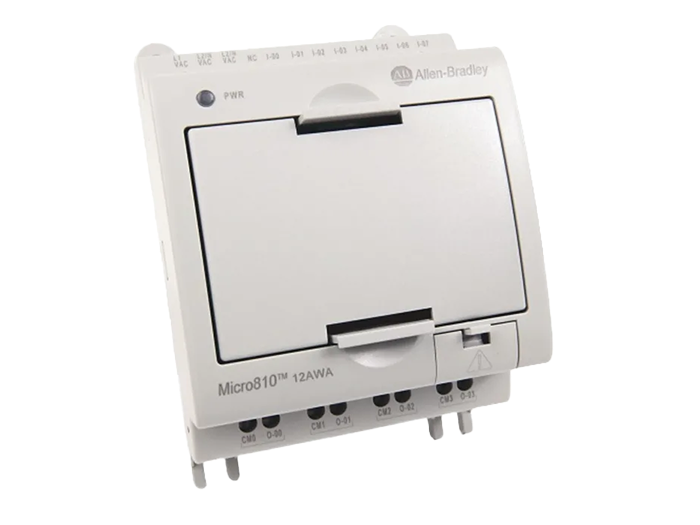

Allen Bradley Micro810 Series PLC CPU, 120 → 240 V Supply, Analogue, Digital Output, 8-Input, Analogue, Digital
TF:
004013-HW-ALLEN-O13
Overview
Micrologix 810 PLC - CPU. The Micro810 12 Point controller is an economical brick-style controller with embedded inputs and outputs. It can accomodate a USB adapter and an LCD module. It can also accomodate any 24V dc output power supply that meets minimum specifications such as the optional Micro800™ power supply
| Manufacturer Series | Micro810 |
| Number of Inputs | 8 |
| Output Type | Analogue, Digital |
| Supply Voltage | 120 → 240 V |
| Input Type | Analogue, Digital |
| Number of Outputs | 4 |
| Voltage Category | 24 V dc |
| Network Type | USB |
| Kit Included | Yes |
| Dimensions | 91 x 75 x 59 mm |
| Minimum Operating Temperature | -20°C |
| Memory | 4 kB |
| Mounting Type | DIN Rail |
| Length | 91mm |
| Depth | 59mm |
| Program Capacity | 2 kB |
| Maximum Operating Temperature | +65°C |
| Number of Communication Ports | 1 |
| Programming Language Used | Function Block, Ladder Logic, Structured Text |
| Width | 75mm |
The Micro810 controller functions as a smart relay with high current relay outputs, but with the programming capabilities of a micro PLC As part of the Micro800 family, the Micro810 controller shares programming environment, plug-ins and accessories
