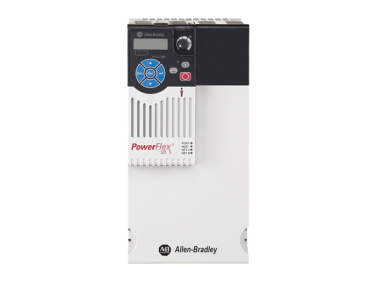

Allen Bradley Inverter Drive, 7.5 kW, 3 Phase, 400 V ac, 17 A, PowerFlex 525 Series
004061-HW-ALLEN-O61
Overview
Allen Bradley PowerFlex 525 – Three Phase Inverter Drives, Experience dependable and versatile motor control and greater ease-of-use with the PowerFlex 525 Three Phase Inverter Drives by Allen Bradley. These AC drives are a cost-effective, ideal solution for networked machines and system integration and are highly suitable for applications such as conveyors, fans, pumps, and mixers.
| Power Rating | 7.5 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 17 A |
| For Use With | Networked Machine |
| Series | PowerFlex 525 |
| Field Bus Communication Type | DeviceNet |
| IP Rating | IP20, IP30 |
| Output Frequency | 500Hz |
| STO | Yes |
| Drive Type | Vector Control |
| Mounting Type | DIN Rail |
| Filter Included | Yes |
| Control Panel | Yes |
| Overall Width | 220mm |
| Standards Met | ACS 156, ATEX, CE, CE Marine (RINA), C-Tick, cUL, GOST R, KCC, RoHS, Semi F47, TUV, UL |
| Overall Depth | 184mm |
| Function | Motor Control |
| Overall Length | 109mm |
| Interface | Ethernet |
| Special Features | Enhance Safety, Excellent Reliability, Flexible Control |
The innovative PowerFlex 525 AC drives offer a modular design which ensures quick and simple installation and configuration to save you valuable time as well as panel space. They provide efficient USB programming, integral EtherNet/IP™ communications, flexible mounting options, application-specific configuration, and standard safety features. They also offer a compact footprint and these resilient Variable Frequency Drives can operate at high temperatures, working up to 70°C (158 °F) with current derating and a control module fan kit.
