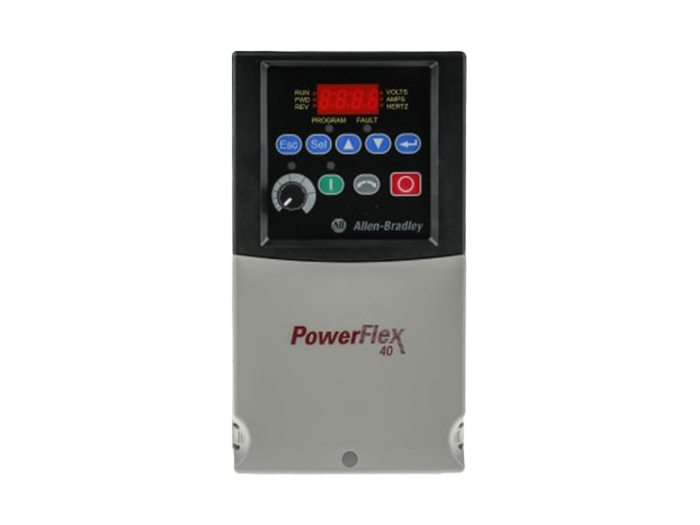

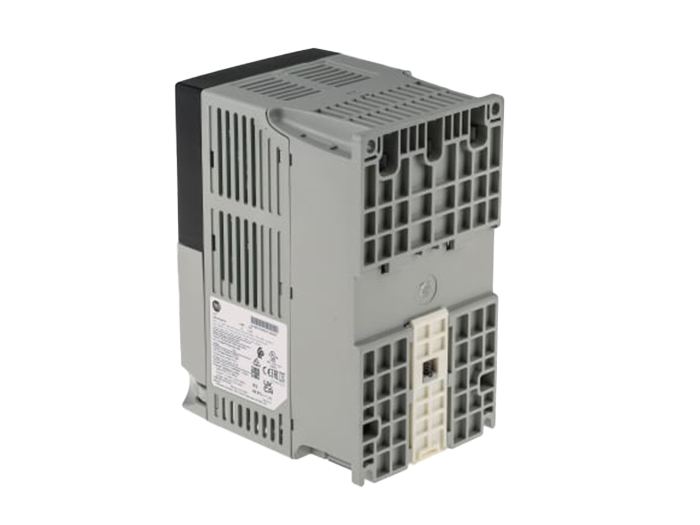

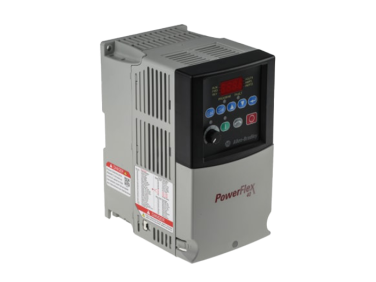

Allen Bradley Inverter Drive, 4 kW, 3 Phase, 400 V ac, 10.5 A, PowerFlex 40 Series
TF:
004054-HW-ALLEN-O54
Overview
The PowerFlex 40 AC Drive by Allen Bradley is a highly versatile, cost-effective, compact motor control solution which provides greater ease-of-use.
| Power Rating | 4 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 10.5 A |
| For Use With | AC Motor, Fans, Pumps, Conveyor |
| Series | PowerFlex 40 |
| Field Bus Communication Type | ModBus |
| IP Rating | IP20 |
| Output Frequency | 400Hz |
| STO | No |
| Control Panel | Yes |
| Overall Depth | 136mm |
| Overall Length | 180mm |
| Overall Width | 100mm |
| Interface | Ethernet |
These inverter drives have sensorless vector control to meet low-speed torque demands. They can be installed and configured easily due to their simple programming and flexible enclosure options. These motor control devices are particularly ideal for OEMs, machine builders and end users.
