Allen Bradley Inverter Drive, 0.75 kW, 3 Phase, 400 V ac, 2.3 A, PowerFlex 4 Series
TF:
004066-HW-ALLEN-O66
Overview

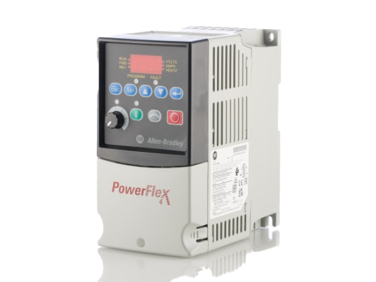

Allen Bradley PowerFlex 4 Inverter Drive For a compact inverter drive that provides powerful and precise motor speed control, look no further than the PowerFlex 4 AC drives by Allen Bradley.
| Power Rating | 0.75 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 2.3 A |
| Series | PowerFlex 4 |
| For Use With | AC Motor, Fans, Pumps, Conveyor |
| Field Bus Communication Type | ModBus |
| IP Rating | IP20 |
| Output Frequency | 240Hz |
| STO | No |
| Control Panel | Yes |
| Overall Length | 152mm |
| Overall Width | 80mm |
| Overall Depth | 136mm |

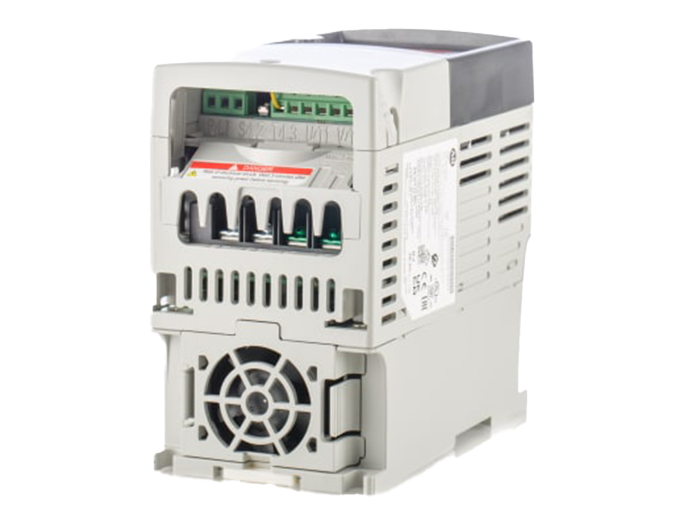

These PowerFlex devices have a space-saving design and can be DIN rail or panel mounted. It is the smallest member of the PowerFlex Variable Frequency Drive family and is designed for optimal flexibility and ease-of-use. It offers an economical alternative for speed control of applications such as pumps, conveyors, fans, machine tools, and material handling systems.
