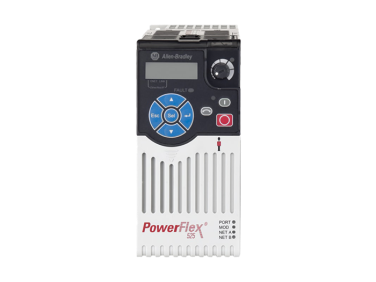

Allen Bradley Inverter Drive, 0.75 kW, 1 Phase, 240 V ac, 4.8 A, PowerFlex 525 Series
004077-HW-ALLEN-O77
Overview
PowerFlex 525 - Single-phase Inverter Drives
PowerFlex® 525 AC Drives are cost-effective and ideal for networked machines and simple system integration. These inverters provide an innovative, modular design that supports fast and easy installation and configuration. In addition, they offer USB programming, application-specific configuration, and flexible mounting options.
The inverter support a wide range of motor control, offer a compact footprint, and operate at temperatures as high as 70°C.
| Power Rating | 0.75 kW |
| Phase | 1 |
| Supply Voltage | 240 V ac |
| Current Rating | 4.8 A |
| Series | PowerFlex 525 |
| For Use With | Networked Machine |
| Field Bus Communication Type | DeviceNet |
| IP Rating | IP20, IP30 |
| Output Frequency | 500Hz |
| STO | Yes |
| Drive Type | Vector Control |
| Mounting Type | DIN Rail |
| Filter Included | Yes |
| Control Panel | Yes |
| Hazardous Area Certification | ATEX |
| Special Features | Enhance Safety, Excellent Reliability, Flexible Control |
| Function | Motor Control |
| Standards Met | ACS 156, ATEX, CE, CE Marine (RINA), C-Tick, cUL, GOST R, KCC, RoHS, Semi F47, TUV, UL |
| Overall Width | 152mm |
| Overall Depth | 172mm |
| Interface | Ethernet |
| Overall Length | 72mm |
This inverter drive from Rockwell Automation's Allen Bradley range is a variable-speed device. You can programme and adjust the output to suit your needs using computer software or the built-in keypad. Install it between an electrical supply and a motor so it can regulate the power before it's used. This type of device is frequently used to control the speed and torque of motors fitted to fans and pumps.
