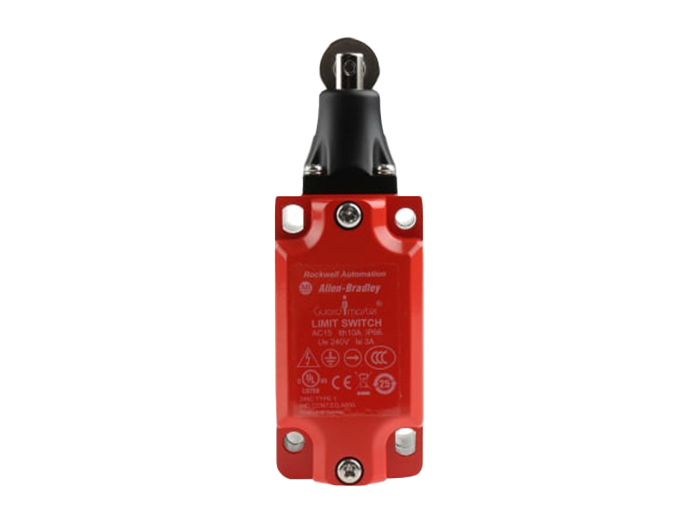

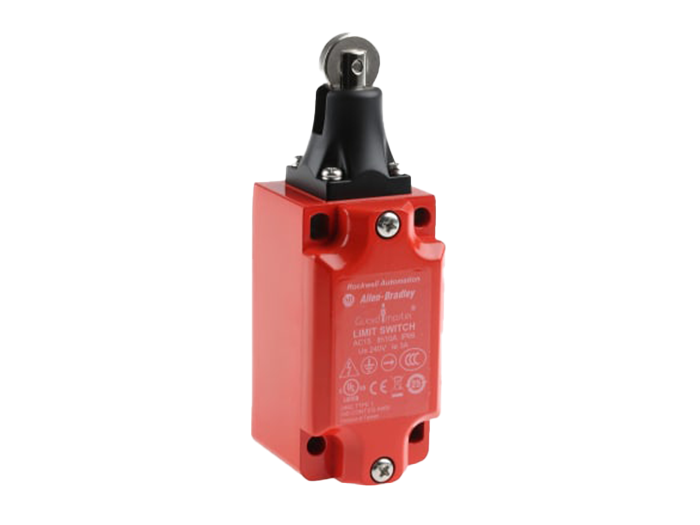

Allen Bradley Guardmaster 440P Series Roller Plunger Interlock Switch, 2NO/2NC, IP66, 4PST, Metal Housing
TF:
004028-HW-ALLEN-O28
Overview
Protect your moving machines and equipment with this robust and reliable safety switch from Rockwell Automation's Allen Bradley Guardmaster range.
| Actuator Type | Roller Plunger |
| Pole and Throw Configuration | 4PST |
| Normal State Configuration | 2NO/2NC |
| IP Rating | IP66 |
| Housing Material | Metal |
| Connection Type | M20 |
| Series | 440P |
| Length | 118mm |
| Minimum Operating Temperature | -25°C |
| Width | 40mm |
| Maximum Operating Temperature | +80°C |
| Depth | 43mm |
| Operating Force | 11 N |
| Mounting Orientation | Horizontal |
| Mechanical Life | 10000000Operations |
Using a positive-operation snap-acting plunger, the contacts quickly and automatically disconnect to prevent accidents. This switch is a durable and long-lasting choice – it comes securely housed in a durable metal-alloy casing and has a mechanical lifespan of at least 10,000,000 cycles. The high IP66 (ingress protection) rating means it's sealed against dust and water jets, so it's suitable for use in harsh industrial environments.
