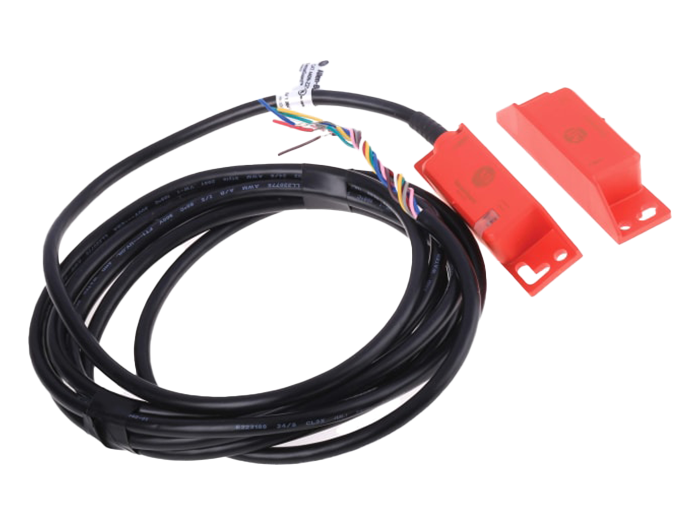

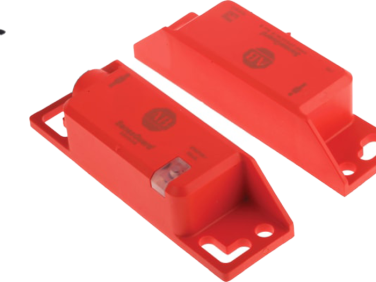

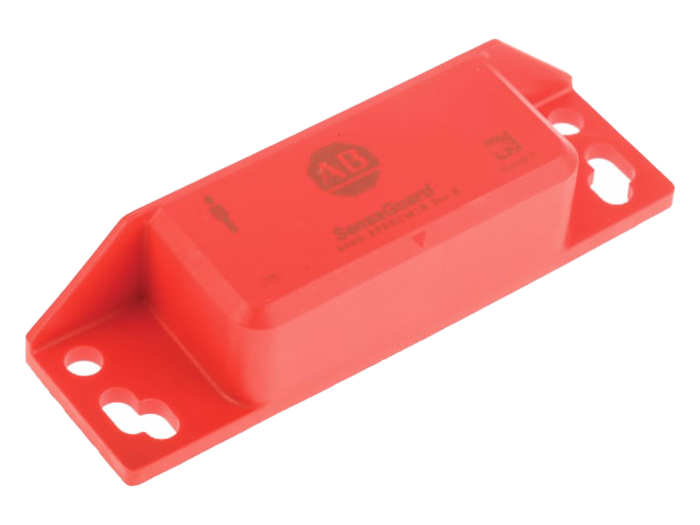

Allen Bradley Guardmaster 440N Series RFID Non-Contact Safety Switch, 24V dc, Plastic Housing, 3m Cable
TF:
004044-HW-ALLEN-O44
Overview
Allen Bradley Guardmaster Sensaguard 440N-Z21SS2AN RFID Non-Contact Safety Switch. Upgrade security for your machine guard door with the 440N-Z21SS2AN Sensaguard non-contact safety switch by Allen Bradley Guardmaster. This interlock unit offers greater protection for personnel and equipment, helping to minimise downtime.
| Supply Voltage | 24V dc |
| Housing Material | Plastic |
| Connection Type | 3m Cable |
| Actuator Type | Coded |
| Sensor Principle | RFID |
| Safety Category | 4 |
| Actuator Included | Yes |
| Series | 440N |
| Switching Distance | 18 mm |
| Range | Sensaguard |
| IP Rating | IP69K |
| Depth | 20.65mm |
| Length | 88.14mm |
| Width | 24.99mm |
The Sensaguard range features advanced latest generation Radio Frequency Identification technology for coding and inductive technology for sensing, providing high reliability and tamper-resistance. The switches have a large sensing range and ensure tolerance to door misalignment.
