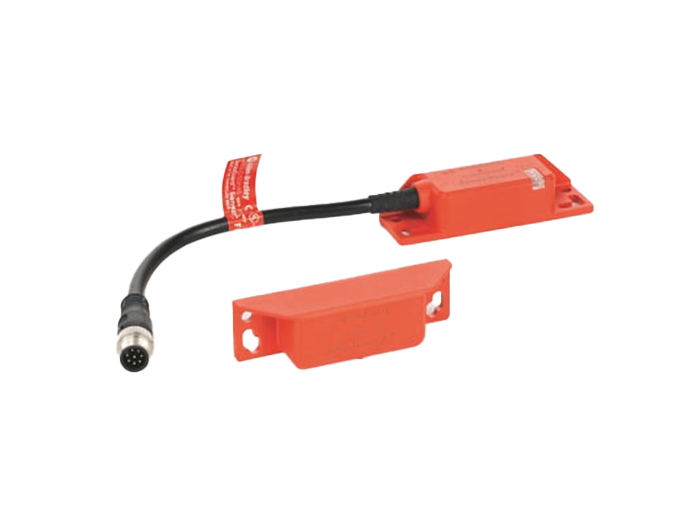

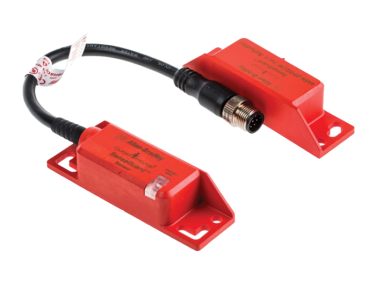

Allen Bradley Guardmaster 440N Series RFID Non-Contact Safety Switch, 24V dc, Plastic Housing, 2NC, Micro M12
TF:
004034-HW-ALLEN-O34
Overview
Establish a higher level of machine safety in your workplace with the SensaGuard 440N RFID non-contact safety switch, with plastic housing, 24 V dc, by Allen Bradley Guardmaster.
| Supply Voltage | 24V dc |
| Safety Contacts | 2NC |
| Housing Material | Plastic |
| Connection Type | Micro M12 |
| Actuator Type | Coded |
| Auxiliary Contacts | 1 PNP |
| Safety Category | 4 |
| Sensor Principle | RFID |
| Actuator Included | Yes |
| Switching Distance | 15 mm |
| Series | 440N |
| Range | Sensaguard |
| IP Rating | IP69K |
| Length | 88.14mm |
| Depth | 20.65mm |
| Width | 24.99mm |
This highly reliable switch is designed for installation on safety guards and gates and prevents personnel from accessing unsafe areas by instantly cutting the supply power to machinery when the barrier is opened. It is well suited for applications such as hinge, sliding, and lift-off machine guard doors.
