Allen Bradley Guardmaster 440N Series Magnetic Non-Contact Safety Switch, 250 V ac, 300V dc, Plastic Housing, NO/NC, 3m
TF:
004026-HW-ALLEN-O26
Overview

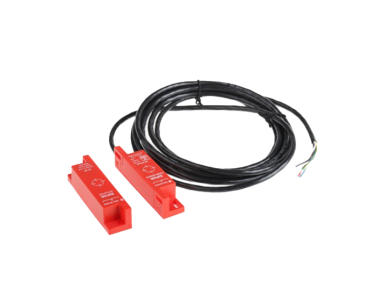

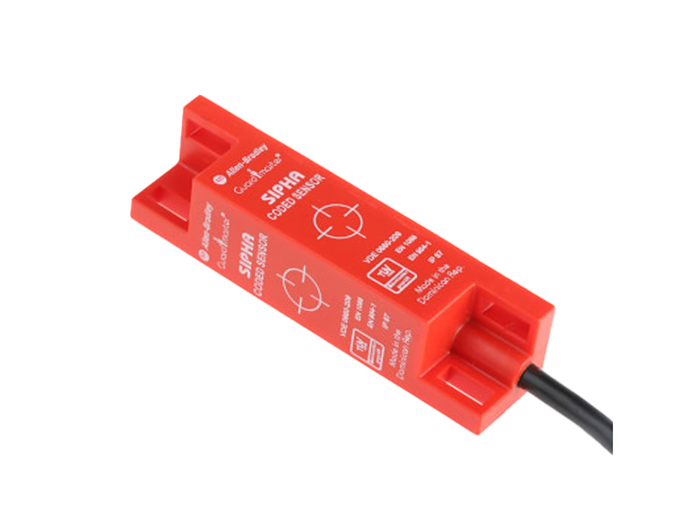

Allen Bradley Guardmaster 440N-S32015 Magnetic Non-Contact Safety Switch.
| Supply Voltage | 250 V ac, 300V dc |
| Safety Contacts | NO/NC |
| Housing Material | Plastic |
| Connection Type | 3m Cable |
| Actuator Type | Magnetic |
| Sensor Principle | Magnetic |
| Safety Category | 3 |
| Actuator Included | Yes |
| Range | Sipha |
| Switching Distance | 9 mm |
| Series | 440N |
| IP Rating | IP67 |
| Length | 19mm |
| Depth | 82mm |
| Width | 19mm |
The Sipha 440N-S32015 Magnetically Coded Non-Contact Switch by Allen Bradley Guardmaster provides superior monitoring for machine guards and enhanced protection for operators. This innovative technology uses several magnetically sensitive elements which must be activated in a precise order to operate correctly. Access to dangerous areas is prevented, as power to the motor is isolated when the safety barrier is released.
