Allen Bradley Guardmaster 440N Series Magnetic Non-Contact Safety Switch, 24V dc, Stainless Steel Housing, NC, 2m Cable
TF:
004055-HW-ALLEN-O55
Overview

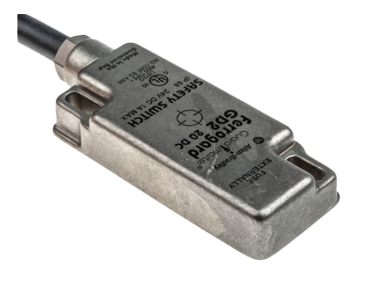

Allen Bradley Guardmaster 440N-G02156 Ferrogard Magnetic Non-Contact Safety Switch
| Supply Voltage | 24V dc |
| Safety Contacts | NC |
| Housing Material | Stainless Steel |
| Connection Type | 2m Cable |
| Actuator Type | Magnetic |
| Auxiliary Contacts | NO |
| Sensor Principle | Magnetic |
| Safety Category | 1 |

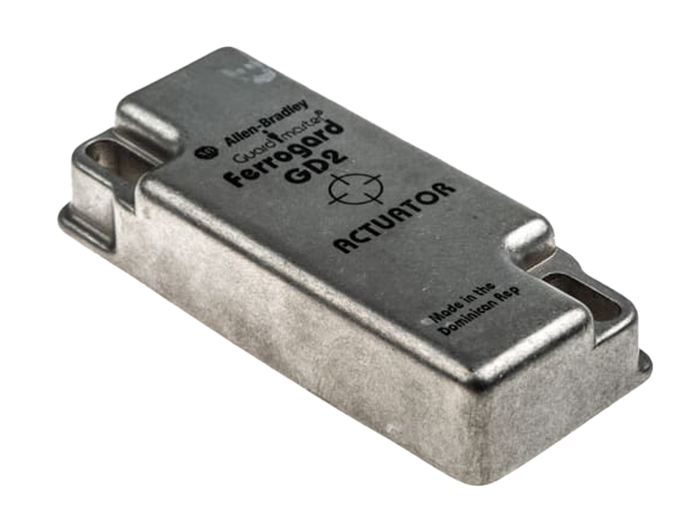

| Actuator Included | Yes |
| Range | Ferrogard |
| Series | 440N |
| Switching Distance | 12 mm |
| IP Rating | IP67 |
| Length | 90mm |
| Width | 19mm |
| Depth | 16mm |
Give your machine guard door a safety upgrade with the Ferrogard 440N-G02156 Magnetic safety switch, 24 V dc in stainless steel housing, by Allen Bradley Guardmaster. This switch ensures that power to machinery is cut off when the guard door or gate is opened and keeps the power supply isolated until the guard is closed again, preventing personnel from accessing a hazardous area and reducing risk of injury.
