Allen Bradley Guardmaster 440N Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, 2NC, 6m Cable
004029-HW-ALLEN-O29
Overview
Provide essential protection for personnel by ensuring safe-access to machinery with the Ferrogard 440N-G02083 Magnetic Non-Contact Interlock Switch, 24V dc with plastic housing, by Allen Bradley Guardmaster.
| Supply Voltage | 24V dc |
| Safety Contacts | 2NC |
| Housing Material | Plastic |
| Connection Type | 6m Cable |
| Actuator Type | Magnetic |
| Auxiliary Contacts | NO |
| Sensor Principle | Magnetic |
| Safety Category | 1 |
| Actuator Included | Yes |
| Switching Distance | 12 mm |
| Series | 440N |
| Range | Ferrogard |
| IP Rating | IP67 |
| Width | 30mm |
| Length | 76mm |
| Depth | 15mm |

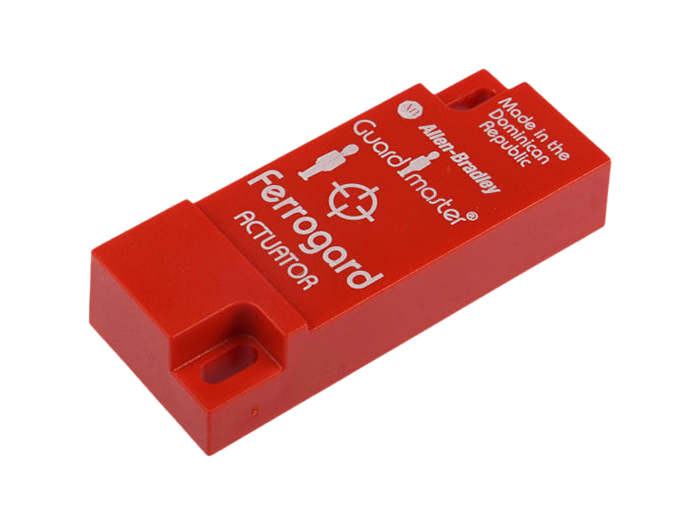

This switch is designed to be installed on machine guard doors and provides high tolerance to door misalignment and movement combined with the well-known reliability of non-contact switches, helping you to minimise downtime. The magnetic actuator is withdrawn from the switch when the safety barrier is released. This opens the NC safety contact which then isolates power to the machine. This ensures that machinery cannot run while the safety barrier is open and ensures that personnel will not access a hazardous area. This interlock switch is ideal for use with sliding, hinge, and lift-off guard doors.
