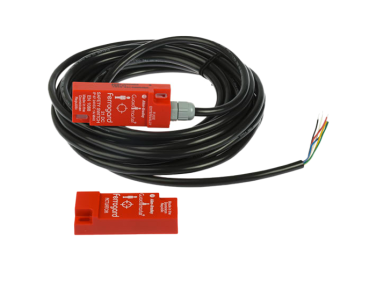

Allen Bradley Guardmaster 440N Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, 2NC, 2m Cable
TF:
004045-HW-ALLEN-O45
Overview
Allen Bradley Guardmaster - Ferrogard 1, 2, 20 & 21 Non Contact Safety Switch. Secure your machine guards and improve safety for personnel with the Ferrogard FRS 1, 2, 20 and 21 Non-Contact Safety Switches by Allen Bradley Guardmaster.
| Supply Voltage | 24V dc |
| Safety Contacts | 2NC |
| Housing Material | Plastic |
| Connection Type | 2m Cable |
| Actuator Type | Magnetic |
| Auxiliary Contacts | NO |
| Sensor Principle | Magnetic |
| Safety Category | 1 |
| Actuator Included | Yes |
| Series | 440N |
| Range | Ferrogard |
| Switching Distance | 12 mm |
| IP Rating | IP67 |
| Supply Current | 1000mA |
| Depth | 15mm |
| Width | 30mm |
| Length | 76mm |
These innovative magnetically actuated non-contact safety switches are expertly designed to be installed on guard doors where they limit access to hazardous areas, preventing risk of injury to operators. When the magnetic actuator is withdrawn from the switch the NC safety contacts are opened, which isolates power to the machine.
