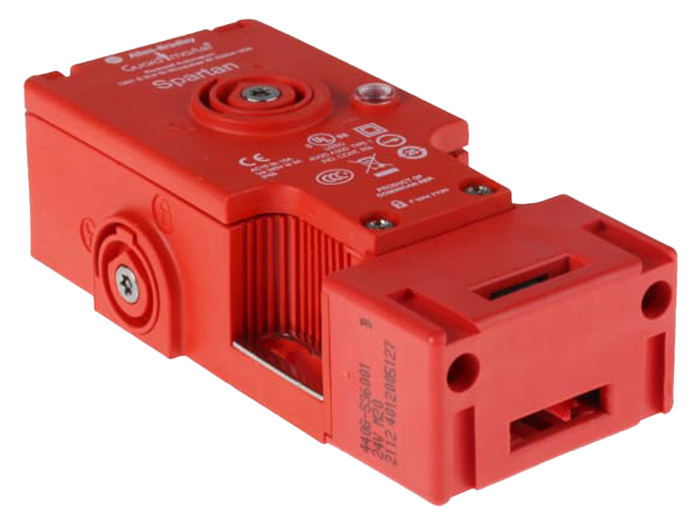

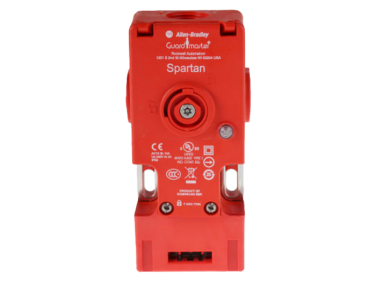

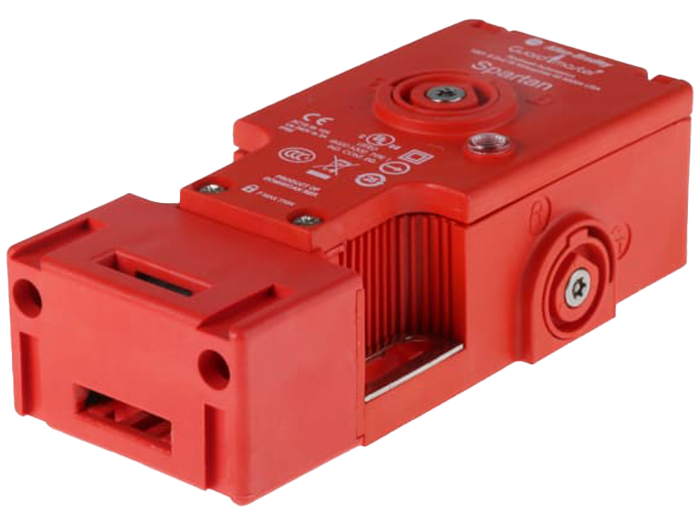

Allen Bradley Guardmaster 440G-S Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc, Actuator Included
TF:
004036-HW-ALLEN-O36
Overview
Allen Bradley Guardmaster Spartan Guard Locking Switches. Secure your guard doors with the Spartan Safety Switches by Allen Bradley and create a safer environment for machine operators.
| Power to Lock / Unlock | Power to Unlock |
| Supply Voltage | 24V ac/dc |
| Series | 440G-S |
| Actuator Included | Yes |
| Range | Spartan |
| Actuator Type | Standard |
| Safety Contacts | 2NC |
| Conduit Entry | M20 |
| Auxiliary Contacts | 1NO |
| Housing Material | Plastic |
| IP Rating | IP67 |
| Depth | 120mm |
| Width | 35mm |
| Length | 58mm |
These switches are ideal for replacing traditional tongue interlocks and have the same footprint as the Trojan tongue interlock. They are supplied with a dedicated Spartan Actuator. These reliable switches have Power-to-Release functionality and 2N/C 1N/O contacts. They also have lid mounted status indication for quick and easy troubleshooting, and a rotatable head with 4 possible actuator entry positions.
