Allen Bradley Guardmaster 440G-S Series Solenoid Interlock Switch, Power to Unlock, 230V ac, Actuator Included
TF:
004076-HW-ALLEN-O76
Overview

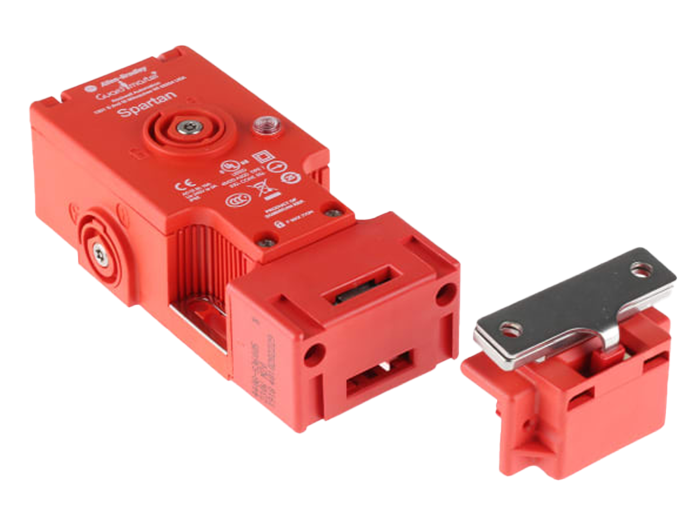

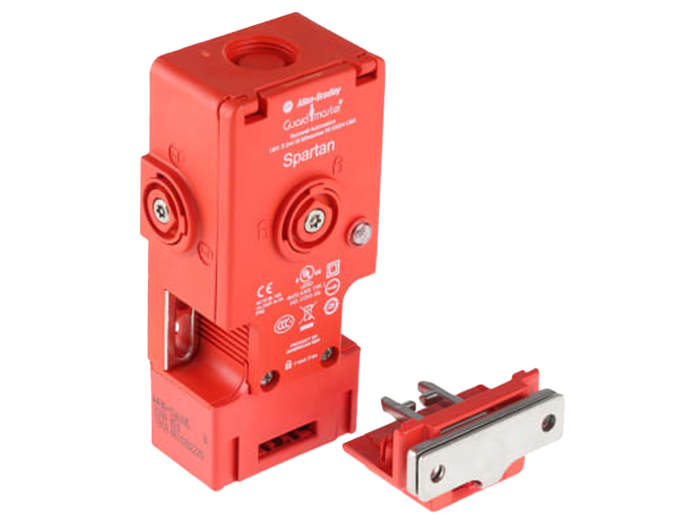

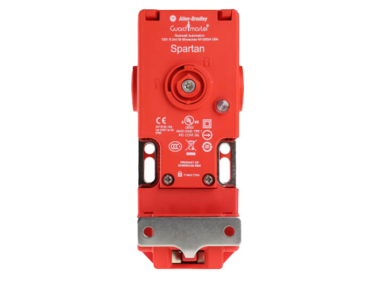

Allen Bradley Guardmaster Spartan 440G-S36005 Solenoid Interlock Switch
Gain superior protection for personnel and keep your machine guard door secure with the Spartan 440G-S Solenoid Safety Interlock Switch by Allen Bradley Guardmaster.
| Power to Lock / Unlock | Power to Unlock |
| Supply Voltage | 230V ac |
| Series | 440G-S |
| Actuator Included | Yes |
| Range | Spartan |
| Actuator Type | Standard |
| Safety Contacts | 2NC |
| Conduit Entry | M20 |
| Auxiliary Contacts | 1NO |
| Housing Material | Plastic |
| IP Rating | IP67 |
| Length | 58mm |
| Width | 35mm |
| Depth | 120mm |
The 440G-S36005 Power-to-Release safety switch has a supply voltage rating of 230VAC/DC and M20 conduit entry. It features a high holding force of 770N (173 lbs) for greater stability. It has 2NC Safety Contacts and 1NO Auxiliary Contact. The housing material is made of UL approved resilient glass-filled polyester, and it has a thermal current of 10A and an operating temperature of -20°C to 60°C.
