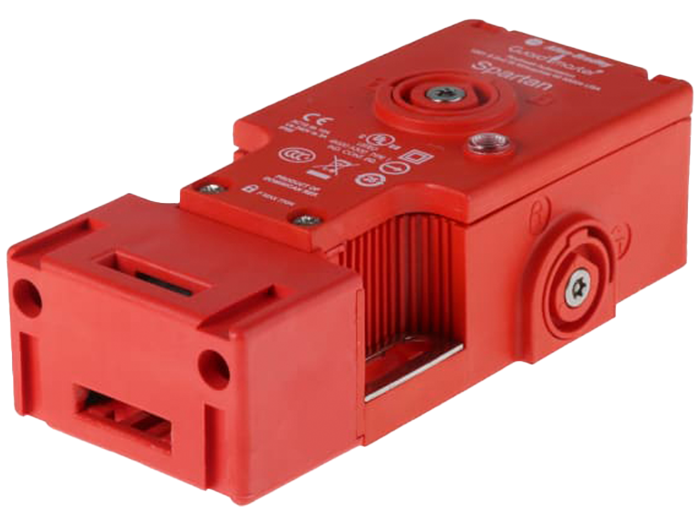

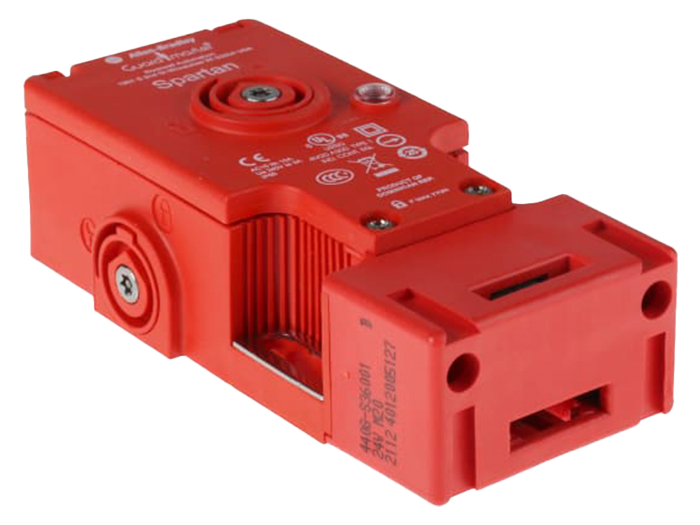

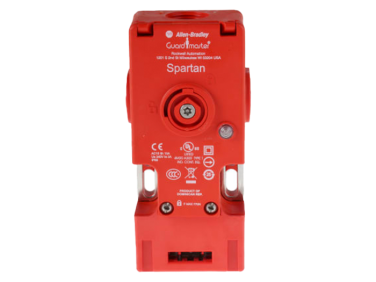

Allen Bradley Guardmaster 440G-MT Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc, Actuator Included
TF:
004037-HW-ALLEN-O37
Overview
Ensure affordable and reliable safe-access to machinery for personnel with the 440G-MT47037 safety interlock.
| Power to Lock / Unlock | Power to Unlock |
| Supply Voltage | 24V ac/dc |
| Series | 440G-MT |
| Actuator Included | Yes |
| Safety Contacts | 3NC |
| Conduit Entry | M20 |
| Auxiliary Contacts | 1NO |
| Housing Material | Metal |
| IP Rating | IP67 |
| Depth | 46.75mm |
| Width | 40mm |
| Length | 199mm |
| Standards Met | ANSI B11.19, AS4024.1, CCC, CE Listed, cULus Listed, EN1088, EN954-1, IEC/EN60204-1, IEC/EN60947-5-1, IEC60947-5-1, ISO13849-1, ISO14119, NFPA79, TUV |
This switch can be used on equipment safety barriers to keep them securely locked while in operation, and to keep power isolated while the guard is released. This reduces risk of injury to operators by preventing access to dangerous areas where machinery may be in motion.
