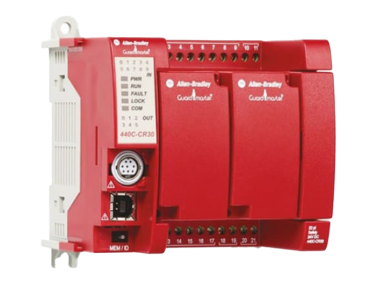

Allen Bradley Guardmaster 440C-CR30 Series Safety Controller, 22 Safety Inputs, 4 Safety Outputs, 24 V dc
TF:
004047-HW-ALLEN-O47
Overview
The Guardmaster 440C-CR30 is a flexible, cost effective and user friendly software configurable safety controller that is ideal for applications requiring 4 to 10 safety circuits and control of up to 5 zones.
| Series | 440C-CR30 |
| Number of I/O | 22 |
| Number of Safety Inputs | 22 |
| Number of Safety Outputs | 4 |
| Safety Category | 4 |
| SIL | SIL 3 |
| Field Bus Communication Type | Modbus |
| Expansion Available | Yes |
| Supply Voltage | 24 V dc |
| Contact Current Rating | 11.1 mA |
| Contact Voltage Rating | 26.4 V dc |
| Terminal Type | Screw |
| IP Rating | IP20 |
| Length | 100mm |
| Width | 90mm |
| Dimensions | 100 x 90 x 80 mm |
| Depth | 80mm |
For simple and seamless programming of standard and safety logic in separate devices the 440C-CR30 can be configured through Connected Components Workbench™ software (the same programming environment used by the Micro800™ family of controllers), PanelView™ Component HMIs and PowerFlex drives. The graphical user interface and drag and drop capabilities of CCW help guide users through a simple process of selecting certified safety function blocks for the 440C-CR30.
