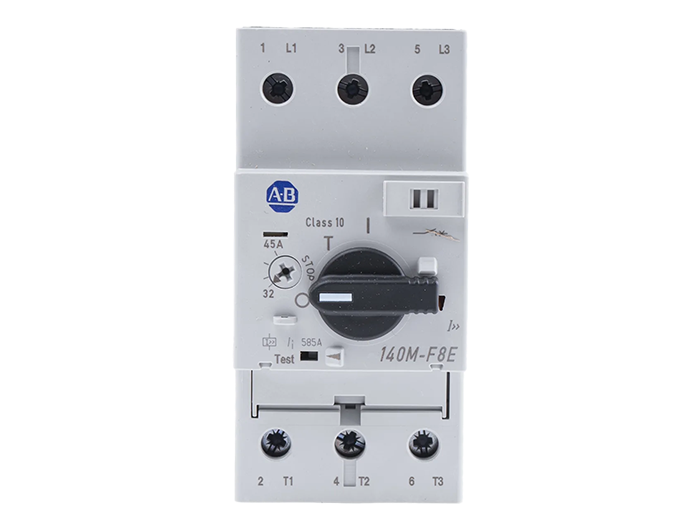

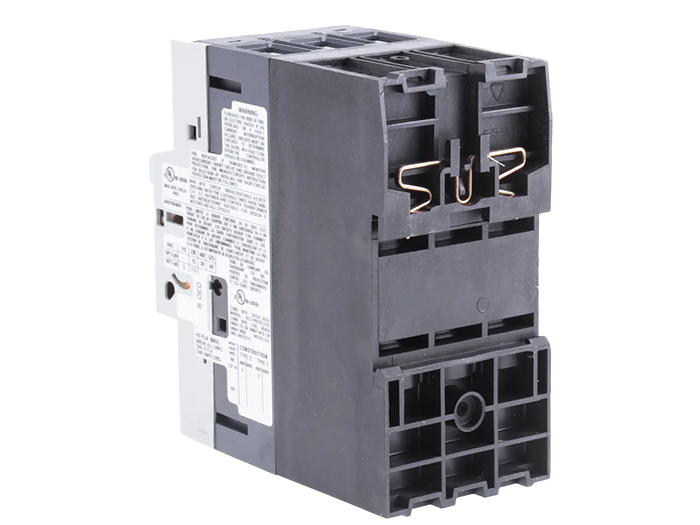

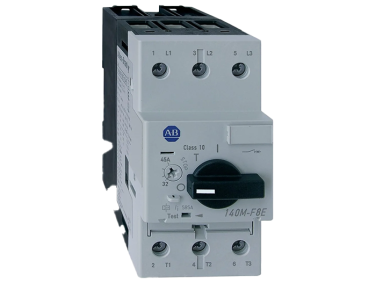

Allen Bradley 32 → 45 A 140M Motor Protection Circuit Breaker, 480 V
TF:
004049-HW-ALLEN-O49
Overview
Experience superior performance and world-class protection for your control system with Allen Bradley’s 140M range of Motor Protection Circuit Breakers.
| Current Rating | 32 → 45 A |
| Range | 140M |
| Motor Protection Component | Circuit Breaker |
| Supply Voltage | 480 V |
| Motor Protection System | Bulletin 100-C |
| Overall Length | 110mm |
| Overall Width | 54mm |
| Overall Depth | 109.5mm |
| Control Voltage | 32 → 45 A |
The Bulletin 140M MPCBs offer a disconnecting means for motor branch circuit, branch-circuit and short-circuit magnetic protection, overload thermal protection, and manual switching. They are rated from 0.1...45 A. These versatile units offer high switching capacity and high current limiting to ensure that you gain a safe, dependable and streamlined motor control process.
