Allen Bradley 100S-C Contactor, 24 V dc Coil, 3-Pole, 23 A, 2NO + 3NC, 690 V ac
004073-HW-ALLEN-O73
Overview

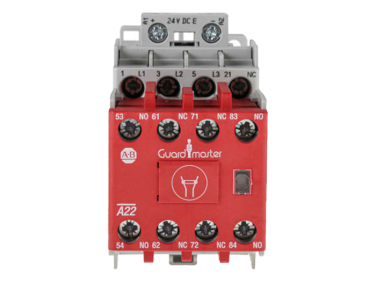

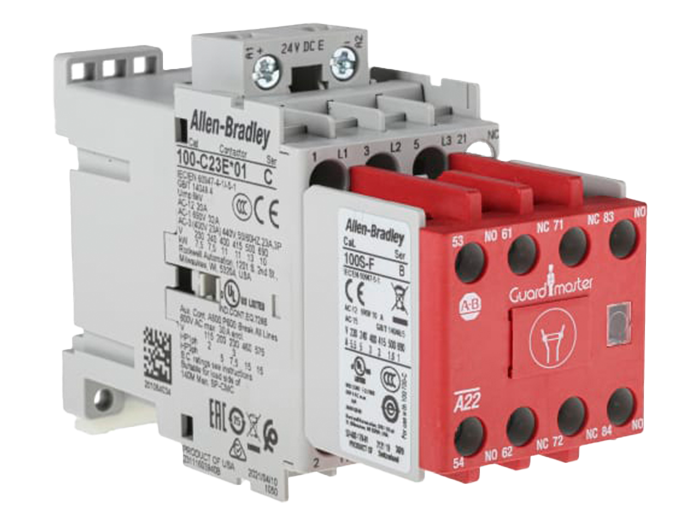

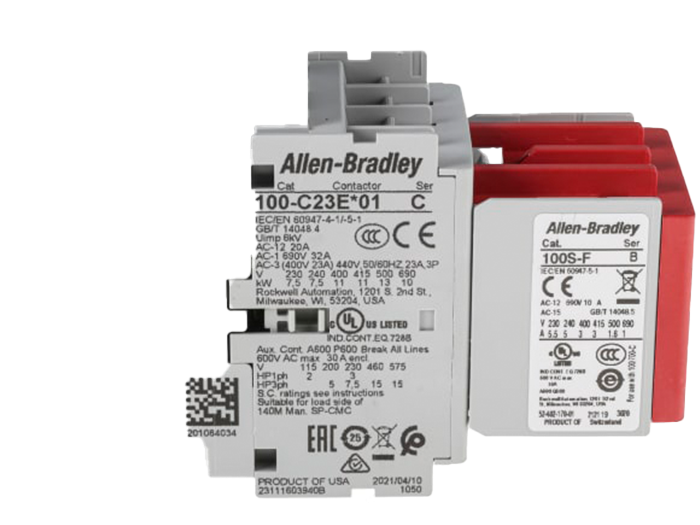

Allen Bradley 100S-C23EJ23C Safety Contactor
For safe and reliable switching capability combined with great performance the 100S-C23EJ23C Safety Contactor by Allen Bradley is an ideal solution. The 100S-C23EJ23C Contactor has 2NO/3NC aux contact configuration and 24 V dc electronic coil voltage. It has a rated operating current of 23 A. It also has 3NO power poles and line side coil termination.
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Voltage Rating | 690 V ac |
| Contact Current Rating | 23 A |
| Series | 100S-C |
| Function | Safety |
| Normal State Configuration | 2NO + 3NC |
| Auxiliary Contact Configuration | 2NO + 3NC |
| Number Of Auxiliary Contacts | 5 |
| Width | 45mm |
| Length | 81mm |
| Depth | 125.5mm |
| Maximum Operating Temperature | +60°C |
| Pole and Throw Configuration | 3P |
| Minimum Operating Temperature | -25°C |
This Bulletin 100S-C Safety Contactor features mechanically linked positively guided contacts, which are required in modern safety application feedback circuits. These mechanically linked NC auxiliary contacts do not change their state when a power pole welds. This efficient unit also offers gold-plated bifurcated auxiliary contacts, making it highly suited for low-energy applications. Additionally, this module is perfect for feedback control circuits with multiple series-connected NC auxiliary contacts. It has front-mounted aux contacts. Due to the bright red colour of the housing this safety unit can be identified quickly and easily when needed.
