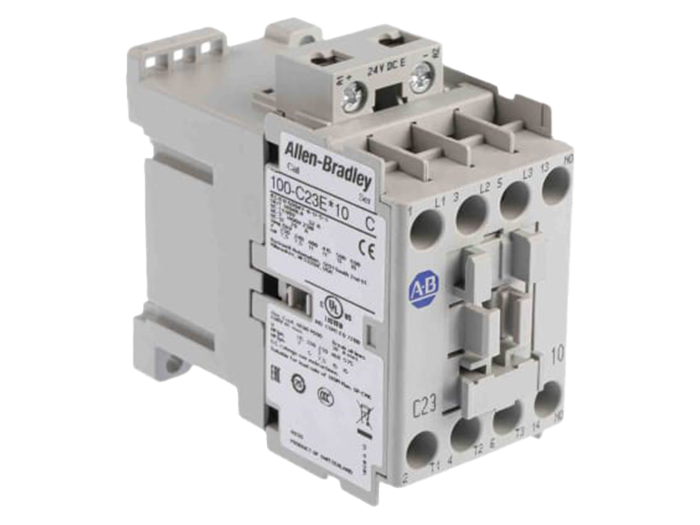

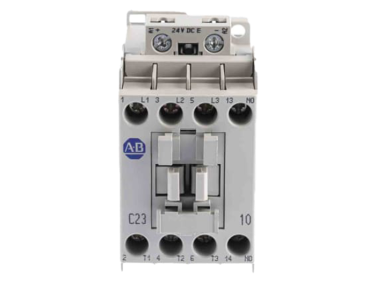

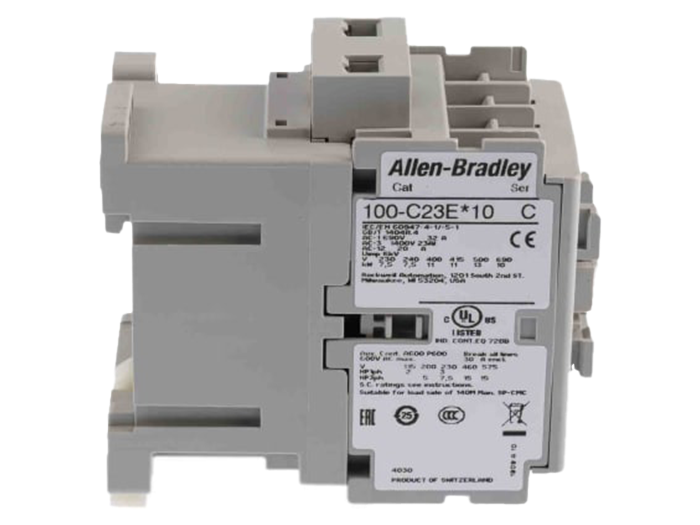

Allen Bradley 100 Series 100C Contactor, 24 V dc Coil, 3-Pole, 23 A, 11 kW, 3NO, 690 V ac
TF:
004062-HW-ALLEN-O62
Overview
Allen Bradley 100-C 24V DC Coil Operating Contactors, The compact yet powerful 100-C series of contactors by Allen Bradley provides exceptional performance with enhanced reliability and efficiency.
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Voltage Rating | 690 V ac |
| Contact Current Rating | 23 A |
| Power Rating | 11 kW |
| Series | 100C |
| Range | 100 Series |
| Function | Motor Control |
| Normal State Configuration | 3NO |
| Number Of Auxiliary Contacts | 1 |
| Width | 45mm |
| Length | 81mm |
| Depth | 86.5mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -25°C |
