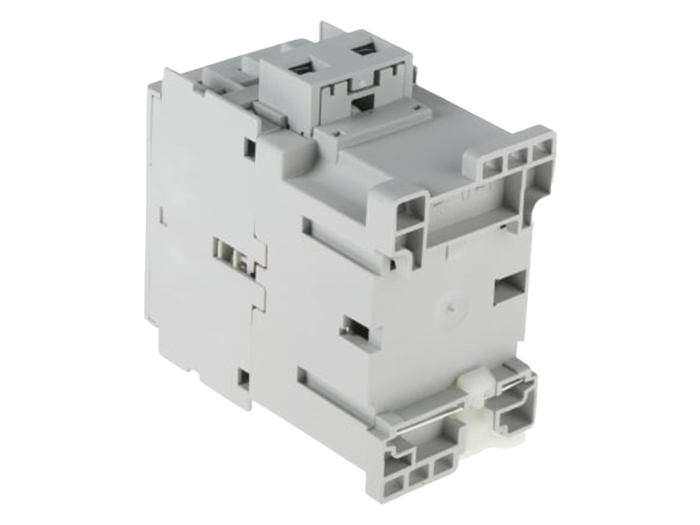

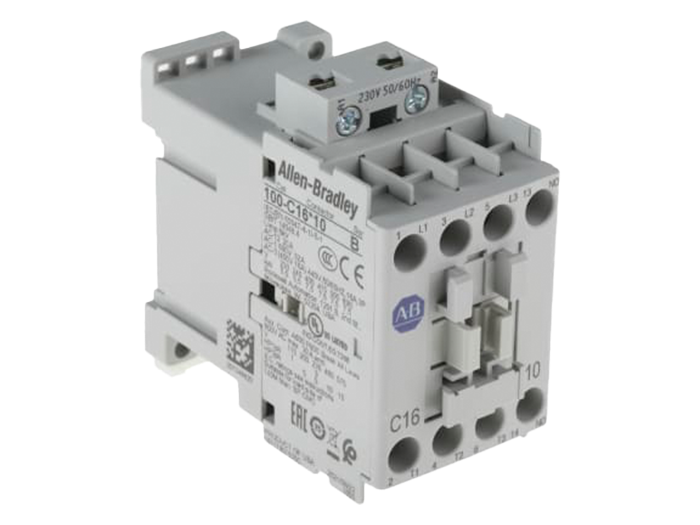

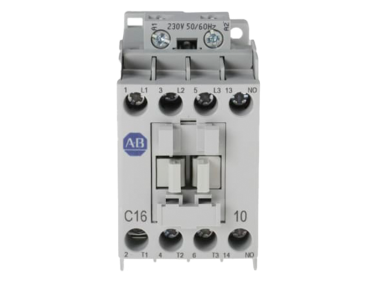

Allen Bradley 100 Series 100C Contactor, 230 V ac Coil, 3-Pole, 16 A, 7.5 kW, 3NO, 690 V ac
TF:
004025-HW-ALLEN-O25
Overview
Allen Bradley 100-C AC Coil Operating Contactors. Experience greater efficiency, reliability, and enhanced performance with the compact yet powerful 100-C series of contactors by Allen Bradley.
| Coil Voltage | 230 V ac |
| Number of Poles | 3 |
| Contact Voltage Rating | 690 V ac |
| Contact Current Rating | 16 A |
| Series | 100C |
| Range | 100 Series |
| Power Rating | 7.5 kW |
| Normal State Configuration | 3NO |
| Number Of Auxiliary Contacts | 1 |
| Terminal Type | Screw |
| Length | 81mm |
| Width | 45mm |
| Depth | 86.5mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -25°C |
These space-saving IEC contactors offer high switching power, ensuring application versatility and the ability to handle the high starting currents of modern motors and other loads. They have low power consumption and offer high connection reliability and ease-of-wiring due to having two separate power connections per pole, saving you valuable time and money. They are made of environmentally friendly materials and are RoHs compliant for added peace-of-mind.
