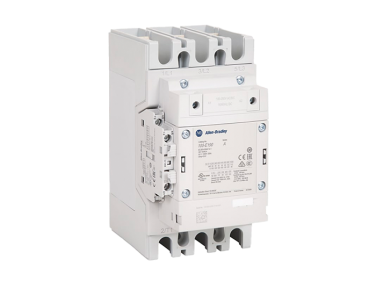

Allen Bradley 100-E Contactor, 100 → 250 V dc Coil, 3-Pole, 190 A, 90 kW, 1NO + 1NC, 400 V ac
TF:
004075-HW-ALLEN-O75
| Coil Voltage | 100 → 250 V dc |
| Number of Poles | 3 |
| Contact Voltage Rating | 400 V ac |
| Contact Current Rating | 190 A |
| Power Rating | 90 kW |
| Series | 100-E |
| Function | Direct on Line |
| Normal State Configuration | 1NO + 1NC |
| Number Of Auxiliary Contacts | 2 |
| Terminal Type | Bar Connections |
| Length | 105mm |
| Width | 152mm |
| Depth | 196mm |
| Mounting Style | Panel Mount |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -40°C |
100-E MCS-E Contactor ,190A, AC3 duty , 100-250V 50/60Hz / 100-250V DC Electronic Coil , 1 N.O. 1 N.C.
