ADLINK ATX Motherboards IMB-M46
-
NG # 00100-HW-ADL-031
-
MF # 00100-HW-ADL-031
Manufactured by:
Industrial ATX Motherboard with 10th Generation Intel® Core™ i9/ i7/ i5 /i3 Processor.
Specification
Vendor Name | ADLink |
System Architecture Form Factor | ATX |
СPU Generation/Family | Coffee Lake |
Processor Supported | Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium, Intel Core i9 |
Socket | LGA1151 |
Chipset | Intel Q470E |
Memory Type | DDR4 2400, DDR4 2666, DDR4 2933 |
Socket Type | 4xDDR4 DIMM 288pin |
Maximum Memory | 128 GB |
Graphic Controller | Integrated in CPU |
Interfaces | DisplayPort, HDMI, VGA |
USB | 12, USB 2.0: 4, USB 3.1: 8 |
GPIO | 4xDigital In / 4xDigital Out |
SATA 3 Channels | 6 |
Audio Controller | Realtek ALC887 |
Audio Output | Line-out |
Internal Ports: | LPT, TPM, 24-pin ATX, 4x10-pin RS-232, 2x4-pin USB 2.0, GPIO, 2x19-pin USB 3.0, 8-pin ATX, 6xSATA 3 |

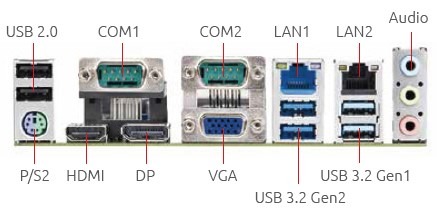

Connectors: | 22xDB9, DB15 VGA, HDMI, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 6xUSB, Audio (in/out/Mic), Display Port |
Temperature: | 0 ... 60 °C |
Input Voltage DC: | 12 ... 12 V |
Description

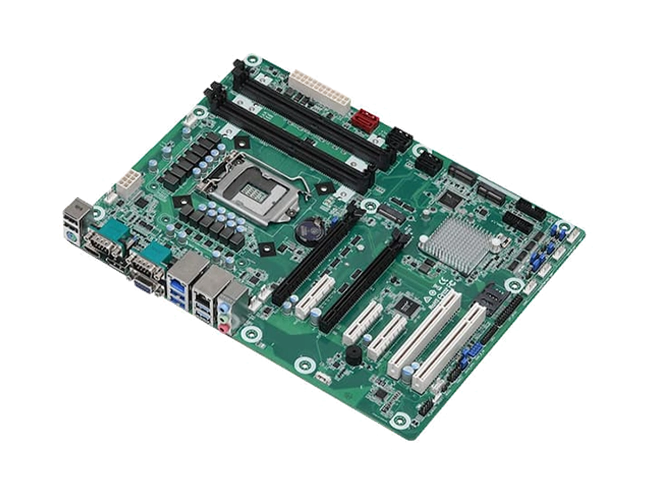

The ADLINK IMB-M46 Industrial ATX Motherboard supports lines of the 10th Generation Intel® Core™ i desktop processors, an Intel® Q470E Chipset, and 5 PCIe expansion slots to provide a cost-competitive embedded computing solution. With its industrial-grade I/O ports design, high-speed data transfer interfaces including PCIe 3.0, USB 3.2 Gen2, ATA 6Gb/s (SATA III) as well as dual-channel DDR4 2400/2666/2933MHz memory, the IMB-M46 Industrial ATX Motherboard offers a significant competitive advantage for durable connectivity, device compatibility, rugged embedded computing as well as extreme environment readiness for industrial machine automation systems, machine vision systems, and testing and measurement applications.
