SWIFTI™ CRB 1300-ABB
-
NG # 003104-HW-ABB-004
Manufactured by:
This
seller generally responds in under 48 hours

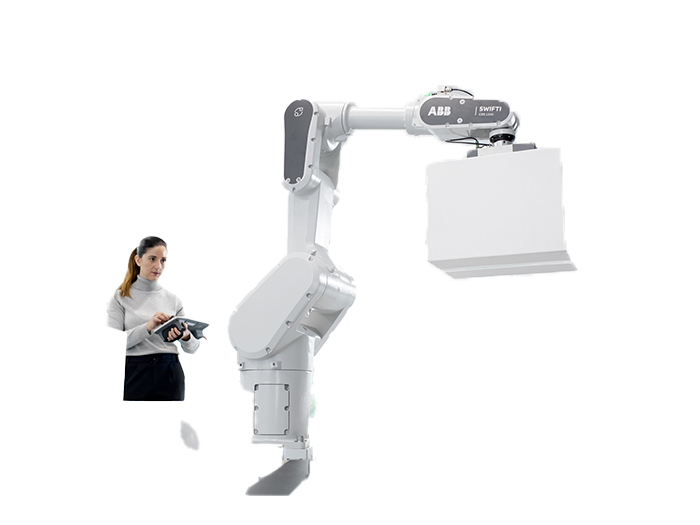

Introducing SWIFTI CRB 1300, the lightning-fast industrial collaborative robot that takes industrial-level performance and innovative safety to the next level.
Specification
| Robot version | Reach (m) | Payload (kg) | Armload (kg) |
| CRB 1300- 11/0.9 | 0.9 | 11 | 1 |
| CRB 1300-10/1.15 | 1.15 | 10 | 0.5 |
| Number of Axes | 6 | ||
| Protection | IP40 standard IP67 Optional | ||
| Mounting | Any angle | ||
| Controller | Omnicore C30/ C90XT optional | ||
| Integrated signal and power supply | Upto 20 signals on the upper arm (c1 + c2 +c3) | ||
| Integrated air supply | 4 air on wrist max 6 bar | ||
| Integrated ethernet | One 1000 Base-T ethernet port (C2) | ||
| Tool flange | ISO 9409-1-40-4-M6 | ||
| Functional safety | SafeMove Collaborative included all safety functions certified to Category 3, PL d | ||
Description

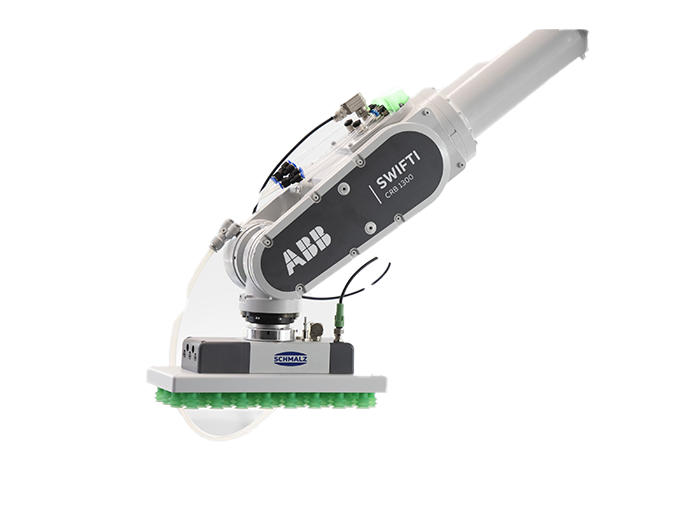

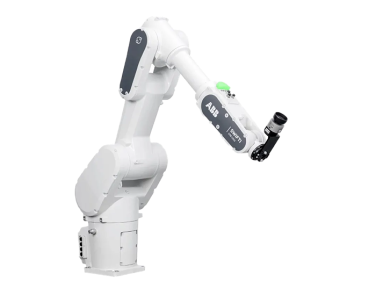

SWIFTI™ CRB 1300 is a lightning-fast industrial cobot that combines industrial-level performance and innovative safety. It combines the best of both worlds: collaborative safety and high performance and precision.
SWIFTI bridges the gap between collaborative and industrial robots. It enables proven safe collaborative operation even in applications that demand industrial-level speed and lifting capabilities.
