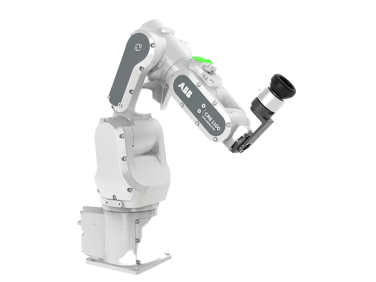

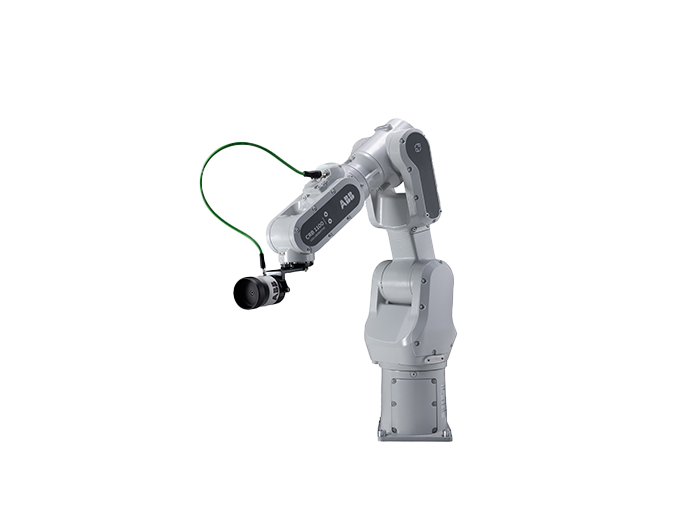

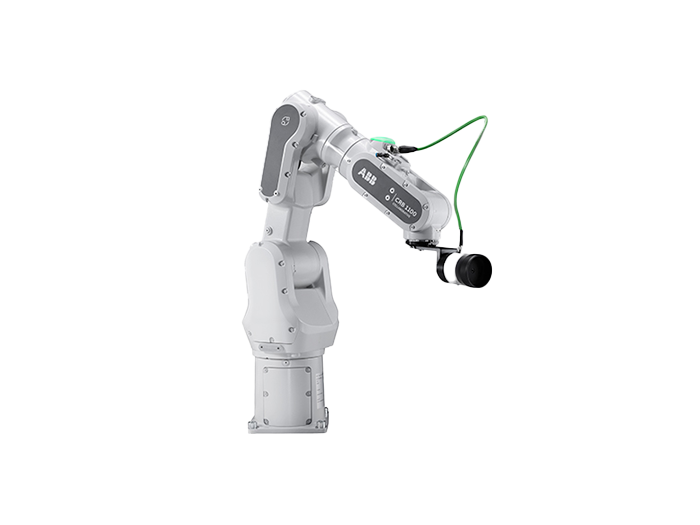

SWIFTI™ CRB 1100-ABB
TF:
003105-HW-ABB-005
Overview
SWIFTI™ CRB 1100 is a lightning-fast cobot that combines industrial-level performance and innovative safety.
| Robot version | Reach (m) | Payload (kg) | Armload (kg) |
| CRB 1100-4/0.475 | 0.475 | 4 | 0.5 |
| CRB 1100-4/0.58 | 0.58 | 4 | 0.5 |
| Number of axes | 6 | ||
| Protection | Standard IP40 | ||
| Mounting | Any angle | ||
| Controller | OmniCore C30 | ||
| Integrated signal and power supply | Up to 12 signals (C1 + C2) on upper arm | ||
| Integrated air supply | 4 air on the wrist (Max. 6 Bar) | ||
| Integrated ethernet | One 1000 Base-T ethernet port (C2) | ||
| Tool flange | Standard ISO 9409-1-31.5-4 M5 | ||
| Functional safety | SafeMove Collaborative included All safety functions certified to Category 3, PL d | ||
SWIFTI™ CRB 1100 is a lightning-fast cobot that combines industrial-level performance and innovative safety. It combines the best of both worlds: collaborative safety and high performance and precision.
SWIFTI™ CRB 1100 is a lightning-fast cobot that combines industrial-level performance and innovative safety. It combines the best of both worlds: collaborative safety and high performance and precision.
